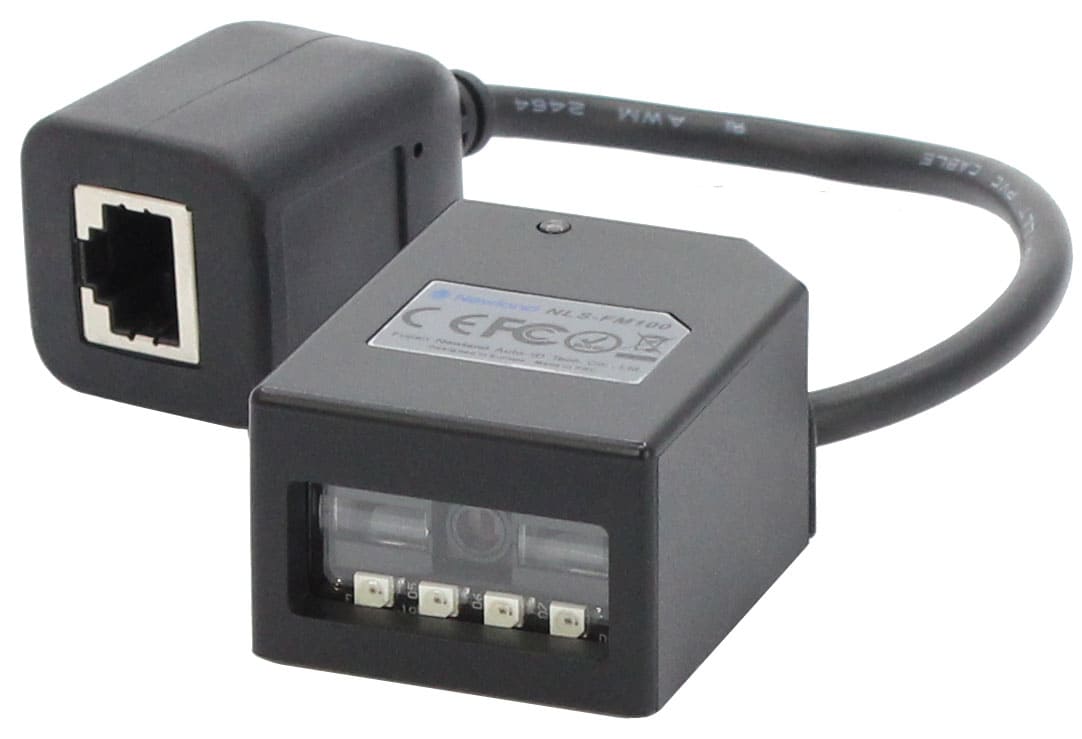

Newland FM100 fixed mount barcode scanner
The Newland FM100 fixed mount barcode scanner, Compact and easy to integrate. The small form factor makes it easy to integrate into a variety of solutions. The Newland FM100 has an IP54 rating meaning it is dust and water resistant.
The Newland FM100 core-technology called UIMG, which is independently designed and manufactured by Newland Auto-ID. UIMG technology includes the optical, CMOS, digitizer, decoder, image processing & embedded systems. The scanner supports all global standard 1D symbologies. Its’ reading performance reaches and exceeds global standards. By using the accessories provided, the user can set up the scanner to make the best use of its environment.
Designed for OEM applications, this high performance Newland FM100 CCD scan engine can easily be integrated into various solutions such as kiosks • ticketing machines • (Reverse) Vending Machines and many, many more.
|Interface||RS232 / USB 1.1|
|Symbologies||Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved
2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1Databar,etc
|Reading Precision||≥ 5mil( Condition: PCS=0.9, testing code: Code 39)|
|Sensitivity**||Pitch ±65°@ 0°Roll and 0° Roll Skew±30°@ 0°Pitch and 0° Skew
Skew ±60°@ 0°Roll and 0° Pitch
|Light Source||LED(622 nm – 628 nm)|
|Light Intensity||256 LUX (130 mm )|
|Depth of Scan Field||40mm-430mm|
|Print Contrast Signal||≥ 30%|
|Mechanical / Electrical||Current||Max 250mA
|Humidity||C 5%~95% (non-condensing)|
|Certificates||FCC Part15 Class B, CE EMC Class B|
|Accessories||USB Cable||This cable connects to the USB Slave port of FM100 with a RJ45 port. With a standard USB Slave port to connect to standard USB Host port|
|RS232 Cable||This cable connect to the RS232 port of FM100 with a RJ45 port. With a standard female RS232 port to connect to standard male RS232 port. With a power port to accept power adapter supply.|
|Power Adapter||The power adapter for FM100 by the CBL-FM100R. Output: DC 5V, 2A; Input: AC100~240V, 50~60HZ|
