The New Syble XB-916BT 1D Wireless Bluetooth Barcode Scanner

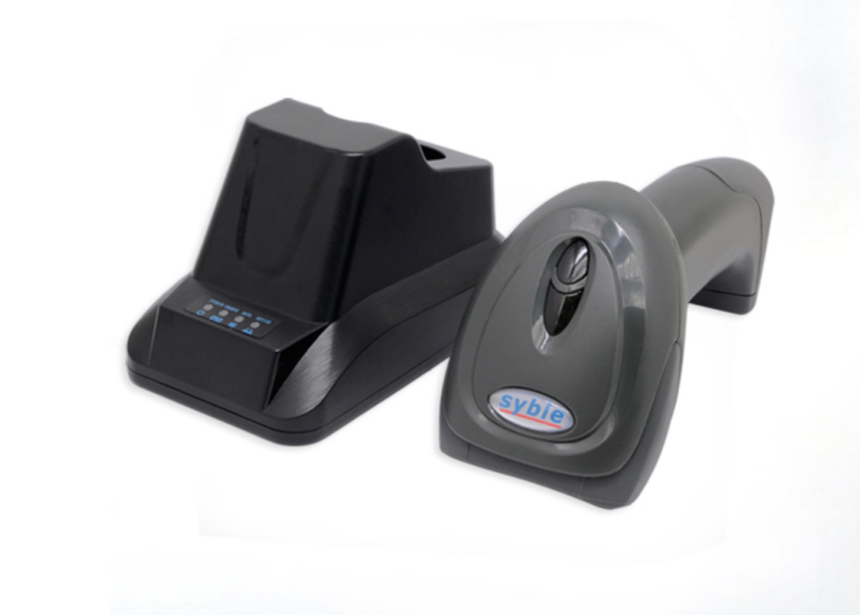

The Syble XB-916BT Wireless Barcode imager.
The New XB-916BT Bluetooth Barcode Scanner is a top selling scanner from Syble. A budget friendly Bluetooth scanner that performs as well as, and in most cases even better than many expensive competing brands. Best of all, The scanner has a dedicated charger base that allows the scanner to be charged without being connected to a computer.
The XB-916BT can connect wirelessly to your Personal Computer USB port via the charging cradle, or via Bluetooth into IOS or Android devices.
Rated for scans in excess of 10,000 scans per month. Syble adopted the latest decoding technology with a 32 bit micro processor. For situations where off line scanning is required, The scanner can be switched to batch mode scanning merely by scanning a dedicated barcode. Saved scans can be retrieved by scanning another dedicated barcode. It’s that simple.
The XB-916BT supports most common 1D Barcodes such as UPC,EAN ,Industrial 2 of 5, etc. Best of all the lightweight and Ergonomic design alleviates customer fatigue ,making it suitable for most operating environments especially continuous operations such as point of sale and checking out.
|Light Sources||617nm Red visible LED|
|Supported Symbologies||UPC-A, UPC-E, EAN-13, EAN-8, Codabar, Code 39, Code 39 full Ascii, China Post, Plessey, MSI, Code 93, Code 128, Industrial 2 of 5, Interleave 2 of 5, Code 11, ISBN, Code 32 (Italian Pharm Code), Code 39 Extended, GS1-128 and ITF-14, SISAS, GS1 Omni, GS1 Limited, Matrix 2 of 5, Aviation25, RSS14.|
|Scan Type||CCD image sensor|
|Scan Speed||≥270 scans / Second|
|Scan Angle||Yaw 65°,Rotation 30°,Pitch 55°|
|Resolution Ratio||2500 Points|
|Scan Mode||Manually/Contnuous/Automatic Scintillation/Automatic induction scanning|
|Precision||≥4mil, 3mil (Optional)|
|Depth of scan field||20-330mm(0.33mm, PCS90%)|
|Error Rate||1/5 million|
|Wireless Communication Mode||Paired Special receiver: 2.4g Communication; Pairing with mobile bluetooth devices: Bluetooth BLE4.0|
|Wireless transmission distance||Open space: 100 Meters|
|Storage Mode||Offlinestorage mode: When scanner exits connection range, Data is stored. Storage capacity is 512,000 characters.|
|Inventory storage mode: Storage capacity is 412,000 characters.|
|Pairing Mode||Matching Mode:|
|One-to-one:Scanner paired with receiver.|
|Scanner paired with Bluetooth mobile device|
|Operating Frequency||Bluetooth V2.1+EDR(Class 1)|
|Transmission Distance||≤100M(Open yard)|
|Pairing Model||One to one,Many to one,(Max 7 channels)|
|Drop/Shock resistance||Withstands Multiple 1.5 Meter drops to concrete.|
|Battery Working Times||12h|
|Operating Current not scanning||≥65mA|
|Operating Current scanning||≥170mA|

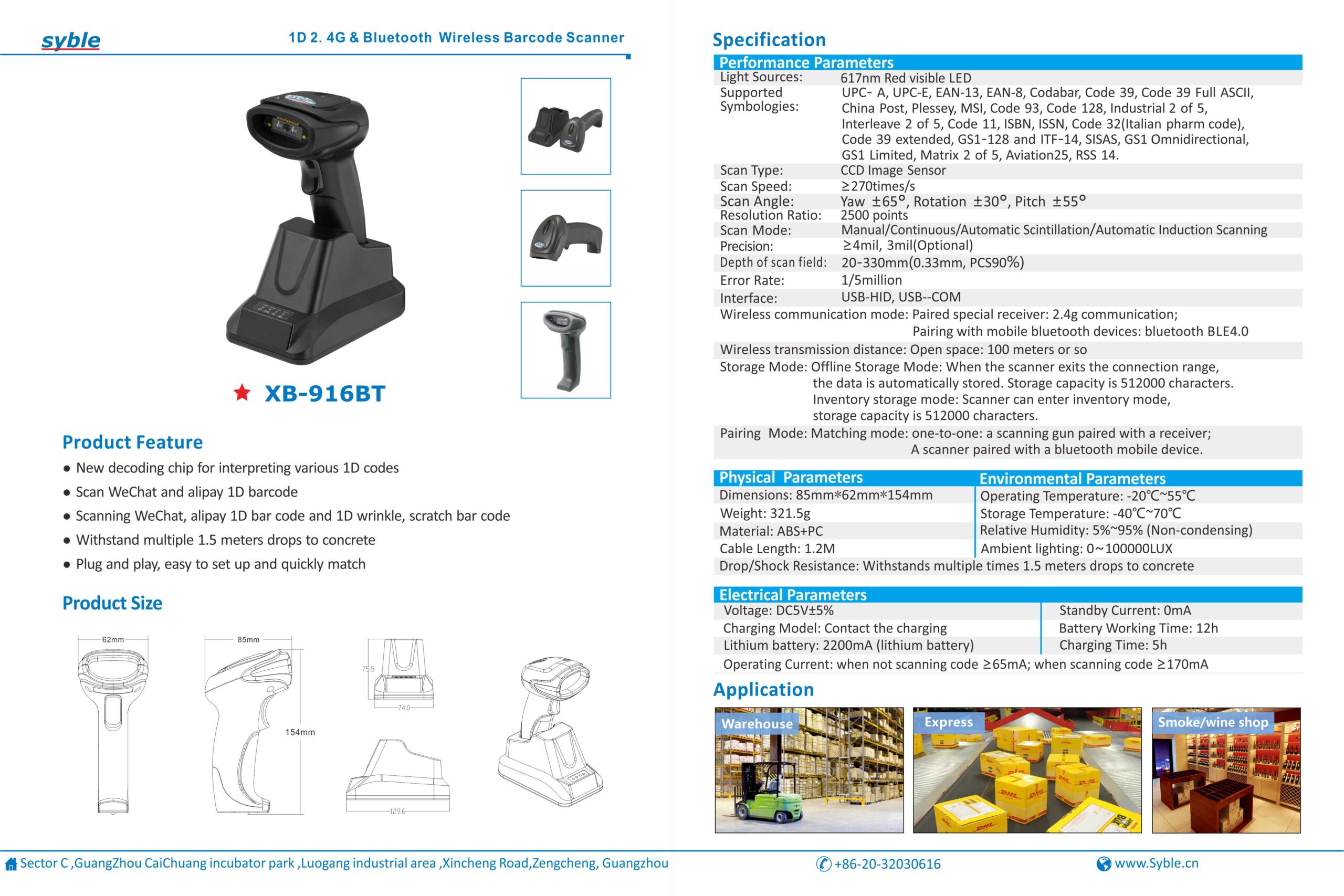

Download Scan Sheet
