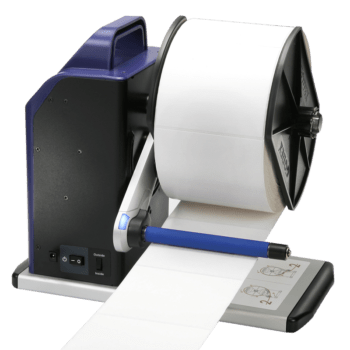

Godex T10 Label Rewinder

Godex T10 Label Rewinder

The Godex T10 Label Rewinder has an idler arm that can be positioned to rewind labels from either side of the printer. Depending on the user’s requirements, the T10 can rewind “inside or outside” label rolls.

Features:

  • Can be used with most printers.
  • Supports inside and outside label rewinding.
  • Stylish appearance plus a rugged design for long term reliability
  • Colored LED indicator provides rewinder operation status
  • Support three Core Size: 1” (25.2 mm – 25.6 mm), 1.5” (40 mm – 40.6 mm) and 3″ (76 mm – 76.6 mm); Core and coreless kits included.

Godex T10 Specifications:

Paper Width Max. 120 mm (4.72”)
Rewind Speed Auto mode: 12 IPS (max)
Fixed: Coreless 5.4IPS / 1 inch Roll: 6.3IPS
Label Roll Diameter Max. O.D. 203.2 mm (8”)
Core Diameter Coreless
I.D. 1” (25.2 – 25.6 mm)
I.D. 1.5”x2 (37.4 – 38 & 40 – 40.6 mm)
I.D. 3” (76 – 76.6 mm)
Label Roll Weight 5 Kg (11 lbs)
Rewinding Label Inside / Label Outside
Motor Hybrid Motor
Power 100 – 240VAC 24W, 24V Adapter
Environment Storage: -4°F to 140°F (-20°C to 60°C)
Operation: 41°F to 104°F (5°C to 40°C)
Humidity 10 – 85% (non-condensing RH)
Agency Approvals CE, FCC Class A
Dimension Length: 13.7” (349 mm)
Height: 11.9” (303 mm)
Width: 7.1” (180 mm)
Weight 11 lbs (5 Kg), excluding consumables
Note * Specifications are subject to change without notice.
