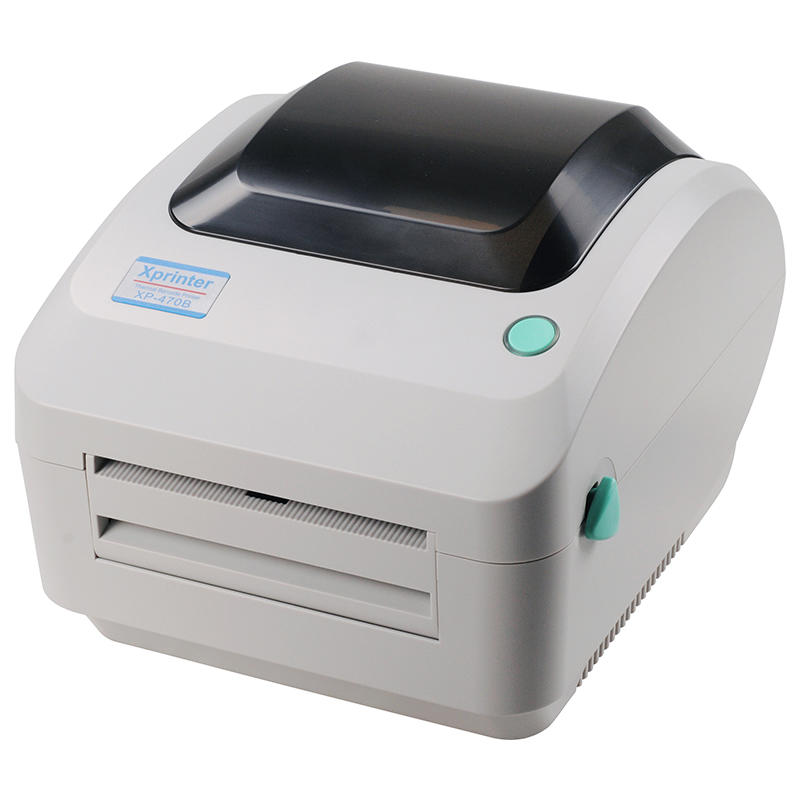

XPrinter XP-470B Direct Thermal Label Printer

XPrinter XP-470B Direct Thermal Label Printer

The XP-470B is one of the latest model’s of Xprinter’s 4 inch Direct thermal label printer,s. High performance from an affordable label printer, this is the XP-470B is the printer that was built for printing higher volumes in a desktop format.
Having a space-saving footprint, it still has a large paper loading bay. One multi-functional button and one two-color indicator for simple easy operation. All this and It has USB and LAN ( Ethernet ) as standard features.
Customers who use Xprinter's
Printing
Resolution8 dots/mm(203DPI)
Printing methodDirect thermal
Max.print speed127 mm (5”)/S
Max.print length108 mm (4.25”)
Media typeContinuous, gap, black mark, fan-fold and punched hole
Media width20-118mm (0.78”-4.4”)
Media thickness0.06~0.25mm
Label length10~1,778mm(0.4''~90'')
Label roll capacity127 mm (5“) OD (outside wound)
EnclosureDouble-walled plastic
Physical dimension211 mm(D)× 240mm(W)× 166 mm (H)
Weight2.15 kg
Processor32-bit RISC CPU
Memery4MB Flash Memory, 8MB SDRAM, SD card reader for Flash memory expansion, up to 4 GB
InterfaceUSB 2.0/ USB+Serial / USB+Bluetooth / USB+Wifi
Internal fonts8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software
Barcode Character
Barcode1D bar code:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,
EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST
2D bar code:PDF-417, Maxicode, DataMatrix, QR code
Font and barcode rotation0°,90°,180°,270°
CommandsTSPL,EPL,ZPL,DPL
Environment condition Operation: 5 ~ 40°C, 25 ~ 85% non-condensing, Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
