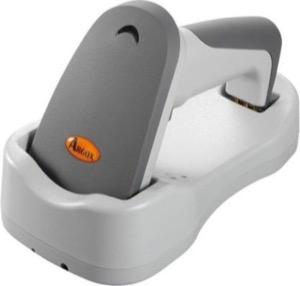

Argox AS-8520 Cordless Scanner

The Argox AS-8520 is an excellent scanner for general purposes.

The Argox AS-8520 long Range Cordless Imager provides a high-performance scanning with a rapid scan rate (450 scans/sec) and superior depth of field (up to 40 inches on 40-mil codes). Utilizing Argox’s unique wireless-communication technology, the AS-8520 operates with a 100-meter data transmission range.
Accompanying with a long-lasting Li-ion battery pack and IP42 sealing level design, the AS-8520 offers the freedom of mobility of barcode scanning and outstanding durability in a wide range of applications including business offices for shipping / receiving, supermarkets, warehouses, and manufacturing.

Features:

Light Weight, Ergonomic Design
General Purpose reader – a single device covering the broadest range of application
Durable – without any moving parts to wear out
Operate with a 100-meter data transmission range.
Excellent Scanning Performance starting at 0.1mm (4 mil)
Readable Under Sun Light
Support GS1 DataBar (RSS) & CS ( Composite Symbology) barcodes
Reliability
(1) Trigger: 1,000,000 times
(2) Cable: 320,000 times (90°)
(3) Drop: 1.5 meter

Download the brochure

	Light source	630nm Visible Red LED
	Optical system	2048 pixel CCD (charge-coupled device)
	Depth of scan field	0-600 mm (Code39, PCS=90%, 20mil)
	Scanning width	160mm
	Scan speed	450 scan/sec
	Resolution	0.1mm (4mil) Code39, PCS=90%, on contact
	Print contrast	30% or more
	Scanning angle	Front: 60° ,Rear: 60° ,Yaw: 75°
	Decode capability	Autodiscriminates all standard barcodes; including GS1 databar Other symbologies can be ordered o
	Beeper operation	7 tones or no beep
	Indicator	Green & Red Led (2 more LED for 8520 cradle)
	Length	164 mm
	Width-handle	30 mm
	Width-head	78 mm
	Depth-handle	56 mm
	Depth-head	35 mm
	Weight	250g (battery included)
	Radio range	100 meters
	Radio frequency	Type: GFSK Modulation Frequency: 2.4~2.483 GHZ Power: 100mw ; Adaptive Frequency System
	Connector type	RJ-45 phone jack connector
	Case material	ABS plastic (over molded at contact pointed)
	Input voltage	5 VDC ± 0.25V
	Operating mode current	900 mW
	Standby current	150 mW
	Operating mode current	225 mA @ 4.2 VDC
	Standby current	32 mA @ 4.2 VDC
	Operating Temperature	0°C to 50°C (32°F to 122°F)
	Storage	-20°C to 70°C (-4°F to 158°F) (battery not included for 8510)
	Humidity	10% to 90% relative humidity, non-condensing
	Light level	Up to 70000 lux
	Shock	1.5m drop onto concrete (90cm for 8520 cradle)
	Programming method	Manual (Reading special barcodes) DOS command through RS232, Windows configuration program
	Sealing	Seals to resist airborne particulate contaminants ( IP 42 )
	Program upgrade	Enabled by build-in flash memory
	Programmable characteristics	Code type selection, check digit selection, Decoding option, Transmitted character delay header sele
	Agency Listing	UL, FCC, CE, BSMI, NCC
	Attention	*This data sheet is for informational purposes only. Argox makes no warranties, expressed or implied
