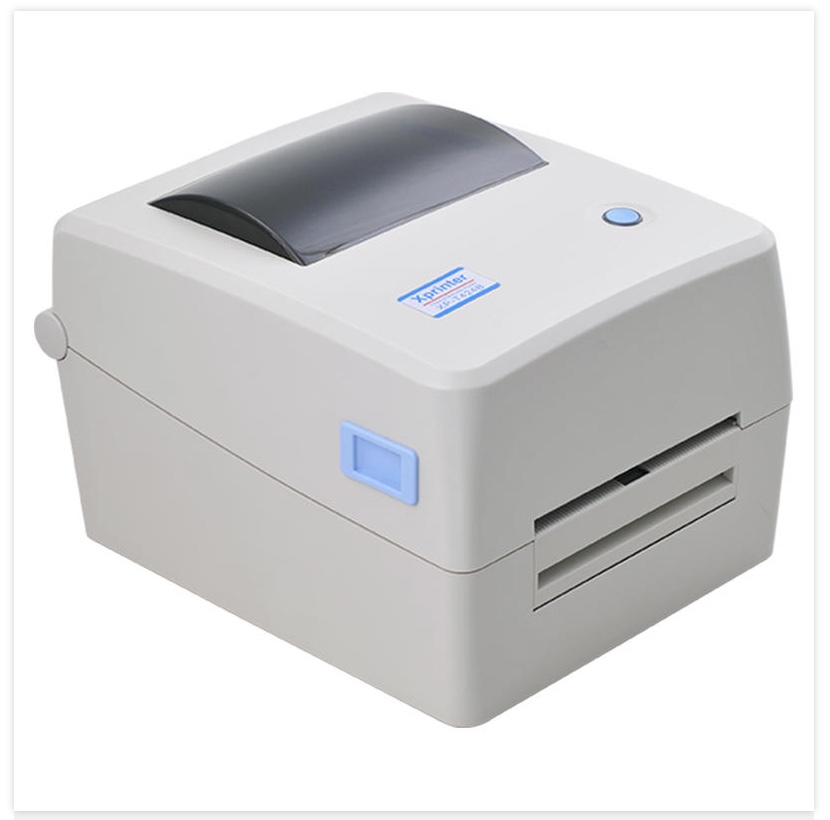

XPrinter XP-TT424B TT Label Printer
The XPrinter XP-TT424B label printer is the best entry level 108mm wide direct thermal & thermal transfer printer available. With it’s 90 Meter ribbon capacity and an impressive maximum print speed of 127mm/s. It features both USB and Ethernet as standard features. It is available in 203 dpi resolution, with easy media loading and 8MB of Flash memory.
The XP-TT424B label printer was built with the end user in mind, The emphasis being on easy media loading, and overall ease of use. This printer comes with Bartender Ultra-Light absolutely free of charge, Making Label design and printing a breeze. If you are looking for an all rounder entry level desktop label printer with nice features, Then this is the one.
The best feature is its affordable price. Give our friendly sales team a call today!
| Printer Model | XP-TT424B |
|---|---|
| Printing Features | |
| Resolution | 203 DPI |
| Printing method | Thermal Transfer / Direct Thermal |
| Max.print speed | 127 mm (5”) / s |
| Max.print width | 108 mm (4.25”) |
| Max.print length | 1778mm(70") |
| Media | |
| Media type | Continuous, gap, black mark, fan-fold and punched hole |
| Media width | 25.4-115 mm (1.0”-4.6”) |
| Media thickness | 0.06~0.18 mm (2.36~10mil) |
| Media core diameter | 25.4 ~ 50.8 mm (1" ~ 2") |
| Ribbon length | Max.90m |
| Ribbon width | 25.4mm-110mm (1"-4.3") |
| Label length | 10 mm ~1778 mm |
| Label roll capacity | 127 mm (5“) OD (outside wound) |
| Performance Features | |
| Processor | 32-bit CPU |
| Memory | 8MB Flash Memory/ Flash memory can be expanded to Max. 4 GB |
| Interface | Standard:USB and LAN (Optional:WIFI/Bluetooth/TF card) |
| Sensors | ①Gap senso |
| ②Cover opening sensor | |
| ③Black mark sensor | |
| ④Ribbon sensor | |
| Fonts/Graphics/Symbologies | |
| Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. |
| 1D bar code | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST |
| 2D bar code | PDF-417, Maxicode, DataMatrix, QR code |
| Rotation | 0°、90°、180°、270° |
| Emulaion | TSPL、EPL、ZPL、DPL |
| Physical Features | |
| Dimension | 246mm*199mm*168mm (D*W*H) |
| Weight | 1.62kg |
| Reliability | |
| Print head life | 30 km |
| Software | |
| Driver | Windows/Linux/Mac |
| SDK | Windows/Linux/iOS |
| Power supply | |
| Input：AC 100-240V | |
| Output：DC 24V, 2.5A | |
| Options | |
| Factory Options | ①Bluetooth module |
| ②WiFi module | |
| ③Real clock | |
| ④Cutter | |
| Dealer Options | ①External paper roll holder |
| ②Paper roll spindle | |
| ③Extension board for external paper roll holder | |
| ④Shipment waybill box | |
| Environmental Conditions | |
| Operation environoment | 5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% non-condensing |
| Storage environment | -40 ~ 60°C（-40~140°F），Humidity: 10 ~ 90% non-condensing |
