New TSC MH240 Industrial Printers
TSC MH240 SERIES of Industrial Printers Announced – We Thought about Everything You Need and Have You Covered!
New Design in Industrial Label Printers, meet the MH240 series
- Easy to operate with the new GUI design on color touch display (except basic model)
- Up to 356 mm (14″) per sec. print speed
- MH240P/ MH340P/ MH640Pincludes full 8″ OD internal rewind on a 3″ label core
- Firmware auto senses 203 dpi, 300 dpi and 600 dpi resolutions
- Ribbon capacity and label near end monitor widget
- “Thermal Smart Control” print technology produces cleanest, high-quality barcodes
- Wireless options include: internal Bluetooth module, slot-in 802.11 a/b/g/n wireless module kit
- USB host interface *2 (front side) for stand-alone applications
- 600-meter ribbon capacity
- Foldable cover reduces desk space needed for each printer
- Tool-free design for print head and platen roller replacement
- ENERGY STAR® certified

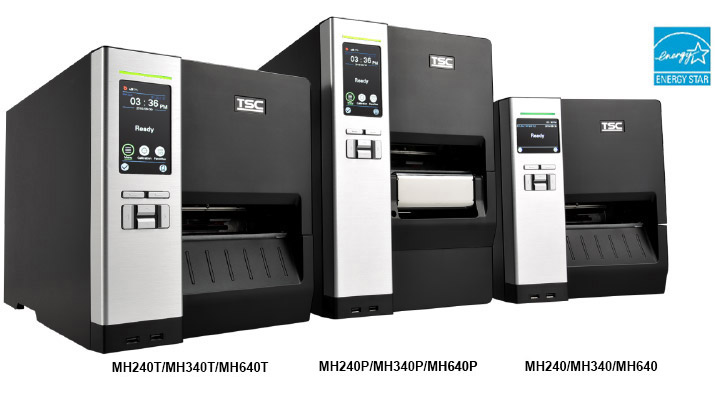

The MH240 Series is a brand-new platform for TSC midrange industrial printing featuring three different levels of models covering 203, 300 and 600 dpi resolutions. All models feature color LCD displays, a high technology printhead, a lightning-fast processor, and all the memory customers will need to print high-quality labels at speeds up to 14 inches per second.

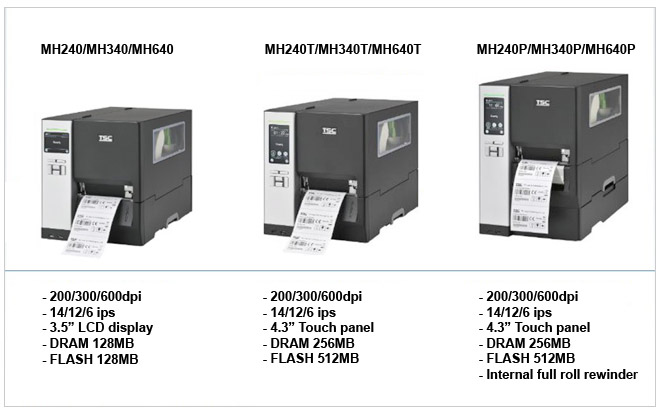

Within the MH240 Series are 9 models designed to fit your enhanced print quality and high-speed printing needs. The main difference of MH240 Series is listed as below table.

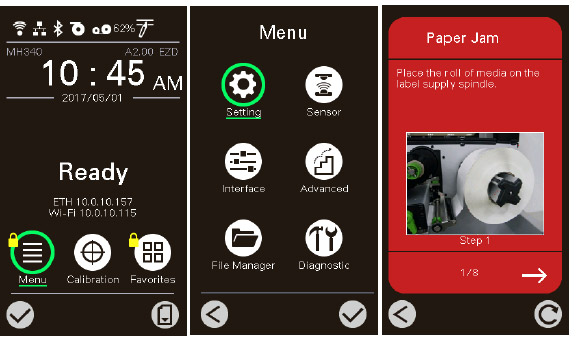

NEW SIMPLE TO OPERATE GUI (GRAPHICAL USER INTERFACE)
The “T” (MH240T/ MH340T/ MH640T) and “P” (MH240P/ MH340P/ MH640P) printers supporting the 4.3″ color LCD touch panel feature our new GUI design that was introduced with the MX240P. The MH240 is loaded with sensors that tell you the state of its ribbon usage, head up or down condition and a multitude of error conditions. The exclusive SSC (Setting Security Control) offers complete setting control, to prevent accidental and undesired changes. The new GUI is designed to deliver a large amount of data to the user in a quick and efficient manner making the MH240 Series the simplest and most informative midrange printer on the market.
14 INCHES PER SECOND – FASTEST MIDRANGE PRINTER ON THE MARKET
Our new MH240 thermal transfer printer now boasts speeds of up to 14 inches per second to deliver on-demand labels at the fastest speed in the industry. Thanks to the use of a modern printhead and a 536 MHz processor, our fastest ever, the MH240 boosts productivity with high-speed communications and ultra-fast printing speeds.
YOUR INVESTMENT IS PROTECTED WITH AUTOMATIC RECOGNITION FIRMWARE

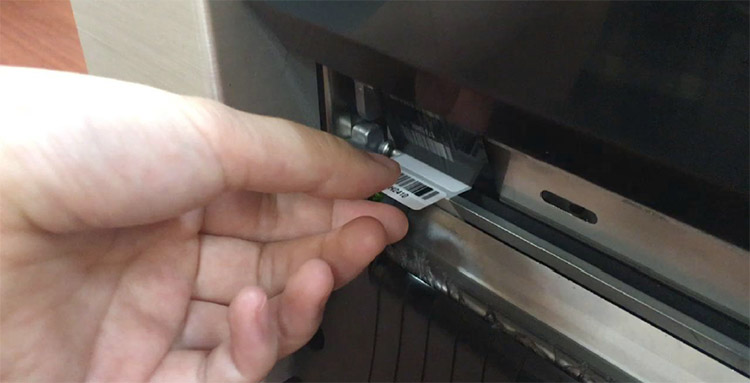

If your labeling needs for your printer change, simply swap out the printhead for a different resolution and the printer’s firmware will recognize and automatically adjust to print at 203, 300 or 600 dpi resolutions.
GREAT CALIBRATION, REGISTRATION AND HIGH RESOLUTION 300 AND 600 DPI PRINT RESOLUTIONS
Our powerful TSPL firmware and a multitude of sensors deliver precise media handling capabilities to deliver the highest quality small labels with excellent print quality. The new MH240 print mechanism is designed for easy label handling with a convenient side-load design, and multiple ribbon handling features to eliminate issues when changing between narrow and wider ribbons. The new design can be set up to peel labels as small as 0.5″ high.
TOP-OF-THE-LINE SPEED, LOADS OF STANDARD FEATURES
Among its many features includes the ability to use 600-meter ribbons and 8-inch outside diameter media rolls for high-volume printing, built-in Ethernet, two USB hosts for keyboard and scanner connections, and USB 2.0 and serial interfaces.
OPTIONS YOU NEED
Options include a version of the printer with cutters, Wi-Fi 802.11a/b/g/n, internal Bluetooth, and GPIO+Parallel ports for integrating with other equipment.
INDUSTRY BEST WARRANTY
All the models are backed by a two-year limited warranty, one of the best in the industry.
POWERFUL TSPL-EZ PRINTER PROGRAMMING LANGUAGE
The MH240 Series is bundled with TSPL-EZ firmware, which incorporates three different printer languages: TSC printer language, TPLE (Translation Printer Language Eltron) and TPLZ (Translation Printer Language Zebra). Versatile and easy to use, the firmware supports internal scalable True Type fonts and features a BASIC interpreter with a file manager for creating powerful printer-interface applications for multiple host types.
