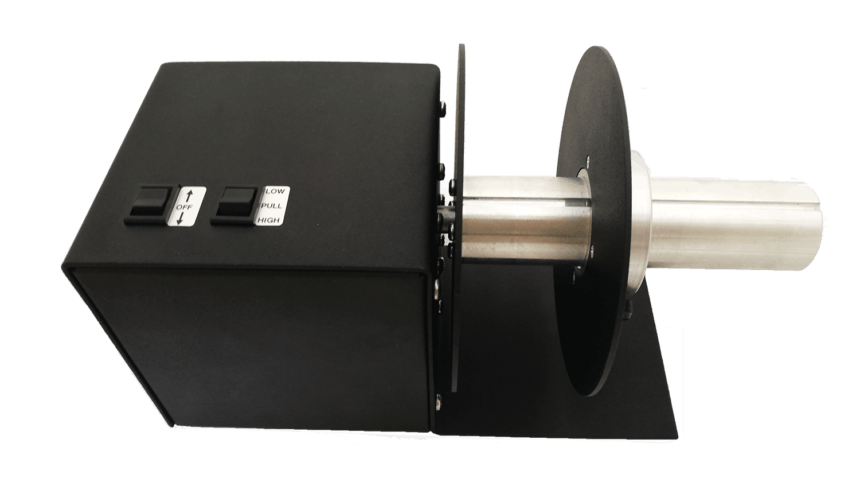

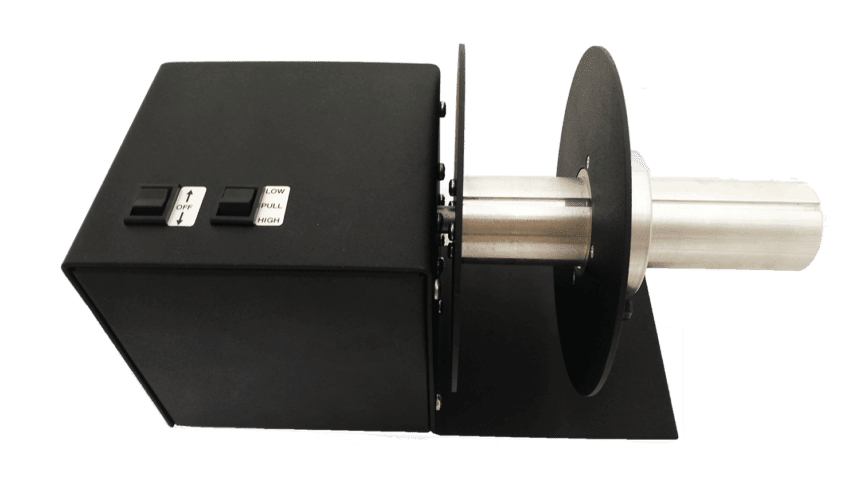

Tautron RW152 label rewinder
The Tautron RW152 label rewinder is used in conjunction with any make of label printer. Easy to set up and even easier to use. The label rewinder makes it easy to get the job done. With automatic tension control, The rewinder will wind up your labels while you work on more important tasks.
Using The RW152 label rewinder.
To use the label rewinder, Place it in front of your label printer. Connect the power supply. print approximatly 700mm of labels. Place a 40mm core on the shaft and lock it in place with the U bar that has been supplied with the rewinder. Tape the labels onto the core. Switch on the rewinder and allow it to take up the slack. You are now ready to let the rewinder do the work rewinding your labels while you continue with more important tasks. Happy printing!
- Electronic tension control
- Automatically adapts to printer speeds
- Rewinds in either direction
- High and low tension settings
- It may be left powered while the printer is stationery
|Printer Speed||0 – 20cm/sec|
|Maximum Roll Diameter||15cm|
|Maximum Roll Width||15cm|
|Core Internal Diameter||40mm|
|Power Input||12V 1A from mains adaptor|
|Dimension||29cm x 15cm x 18cm|
The unit may be operated in a stalled condition for short periods of time. If it will remain stationary for more than an hour, it should be switched off.
