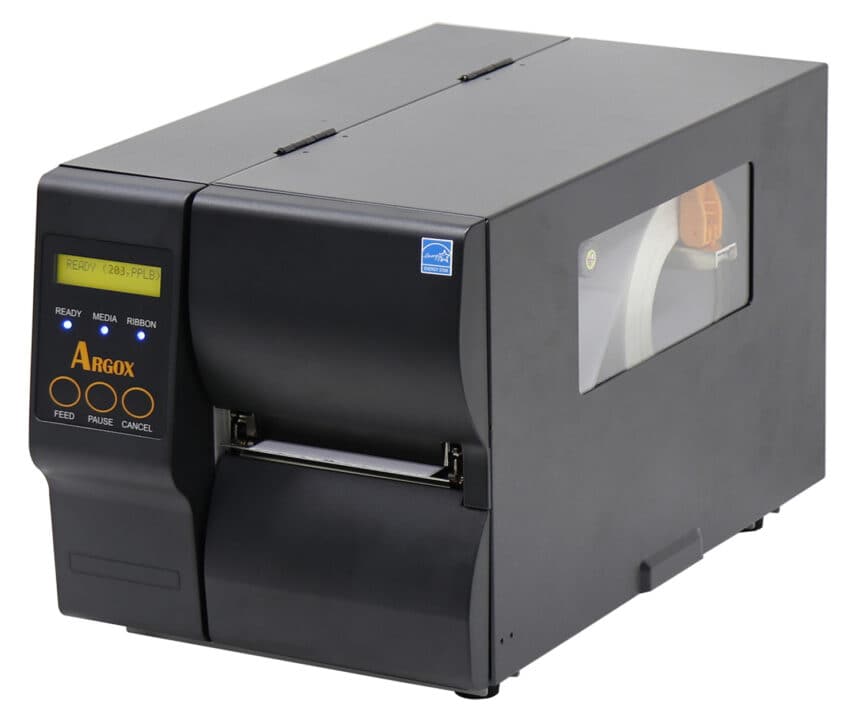

Argox iX4 Label Printer

The Argox iX4 label printer is a great industrial printer, designed to fit your considerable printing needs.

For high volume printing
With new mechanical design, Argox iX4 series supports a large 8.26-inch outer diameter label roll and up to 450-meter ribbon capacity.

Printing speed upgrade to 8 inches/sec
Featuring 8 ips print speed, even print with the highest speed, it can still maintain the perfect print quality.

Multiple interfaces
The Argox iX4 series has built-in Ethernet, Dual USB hosts, USB device, RS-232, and it can be expanded with Wi-Fi, GPIO card/Parallel port.

For high volume printing.
With new mechanical design, Argox iX4 240 supports a large 8.26-inch outer diameter label roll and up to 450-meter ribbon capacity.
Printing speed upgrade to 6 inches/sec.
Featuring 6 ips print speed, even print with the highest speed, it can still maintain the perfect print quality.
Multiple interfaces
The iX4-240 has built-in Ethernet, Dual USB hosts, USB device, RS-232, and it can be expanded with Wi-Fi, GPIO card/Parallel port.

Click here to go to the Argox free software download page.

*Available in both 203 dpi and 300dpi

Printing method	Direct Thermal & Thermal Transfer
	Printing resolution	203 dpi (8 dots/mm)
	Printing Speed	6 ips
	Printing Length	Max 100”(2540 mm)
	Printing Width	4.25”(108 mm)
	Memory	32 MB SDRAM, 16MB Flash ROM (USB storage up to 32GB)
	CPU Type	32 bit RISC microprocessor
	Sensors	Media Transmissive sensor x 1 (movable) / Media Reflective sensor x 1 (movable) & Head open switch / Ribbon end sensor
	Operation Interface	Standard: LED indicator x 3, Button x 3 Factory
	Communication Interface	Standard: Ethernet, dual USB hosts, USB device, RS-232 Option: Wi-Fi (IEEE 802.11 b/g/n), GPIO, Parallel
	Fonts	Internal character sets standard support. Soft fonts are downloadable
	1D Barcodes	UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked
	2D Barcodes	QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
	Graphics	PPLA: PCX, BMP, IMG, HEX,GDI PPLB: PCX, BMP, Binary raster, GDI PPLZ: GRF, Hex, GDI
	Software – Label editing	Windows Driver (Windows XP/Vista/Win7/Win8/Win10), BarTender® from Seaguall Scientific
	Software – Utility	Printer Tool
	Media Type	Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
	Media	Max. width:4.48”(114mm). Min. width: 1” (25.4 mm). Thickness: 0.0025”~0.01” (0.0635mm~0.254mm) 8.26”(210mm)OD on a 3”(76mm) ID core. 7”(177.8mm) OD on a 1.5”(38mm) ID core.
	Ribbon	Ribbon width: 1” (25.4 mm)~4.4”(112mm). Length:max 450m Wax, Max OD 3.2” (81.3mm). Core size ID 1”(25.4mm). Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect) Fonts & Symbologies
	Dimensions	W 250 mm x H 263 mm x D 418 mm
	Weight	24 lbs (11 kg)
	Power Source	Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz
	Operation Environment	Operation Temperature: 40˚F~100˚F (4˚C~38˚C). 10%~90% non-condensing. Storage Temperature: -4˚F~122˚F (-20˚C~50˚C)
	Optional Items	Full Cutter、Partial Cutter、Peeler、External media stand、WLAN
	Agency Listing	CE, CB, cULus, FCC, ICES, Energy Star
