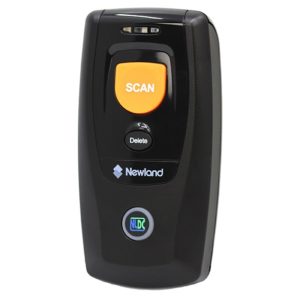

Newland Piranha BS8060 Batch barcode scanner
Piranha BS8060 Bluetooth barcode scanner.
The Piranha BS8060 can be defined by its snappy reading performance and portability, providing the convenience of always having a scanner at your fingertips. With dimensions of 88 x 46 x 24.5mm it is small enough to fit into a pocket and light enough to carry around all day. Despite its small size, the Piranha maintains an excellent performance, scanning virtually all 1D/2D barcodes seamlessly.
The Bluetooth wireless function can be used to pair the Piranha BS8060 with a PDA, smart phone and PAD application. This adaptability and portability makes it the perfect solution for application in retail, warehousing and O2O markets like electronic ticketing and electronic ordering.
Piranha BS8060 Features:
Superior reading performance.
The Piranha BS8060 is offered in 2 versions, containing a 1D or a 1D+2D engines. These engines are capable of reading virtually any barcode from paper or screen. The 2D device has been equipped with a laser aimer with a red cross to make barcode reading easier and faster.
Easy Bluetooth pairing.
Via Bluetooth 4.0 Class 1 wireless technology, the BS8060 can be paired with any Android, iOS or Windows device, five times faster than regular Bluetooth.
Can be used anywhere, anytime.
The BS8060 Piranha is small enough to fit into your pocket and light enough to carry around all day, providing you with the convenience of always having a barcode scanner at your fingertips.
Convenient communication.
Use the interface that suits your application best. The Piranha BS8060 gives you the flexibility to choose your preferred communication method with options like HID keyboard and Virtual COM.
Hassle-free battery capacity.
The high capacity Li-ion battery in the scanner provides up to 11 hours of continuous use per charge, allowing you to work hassle-free all day.
Charging and communication cradle available (optional).
Specifications
| BS8060-1D | BS8060-2D | ||
| Performance | Image Sensor | 2500 Linear Imager | 752×480 CMOS |
| Symbologies | 1D: Code128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, ISSN, Interleaved 2 of 5, Code 93, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc. |
2D: PDF417, QR Code, Data Matrix, etc. 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, ISSN, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc. | |
| Resolution | ≥5mil | ≥5mil | |
| Typical Depth of Field | Code 39 105mm-175mm (5mil) Code 128 60mm-340mm (10mil) EAN-13 55mm-410mm (13mil) |
EAN-13 60mm-380mm (13mil) Code 39 60mm-190mm (5mil) Data Matrix 85mm-140mm (10mil) QR Code 40mm-190mm (15mil) PDF 417 85mm-150mm (6.67mil) |
|
| Scan Angle | Pitch: ±55°; Roll: ±25°; Skew: ±75° | Pitch: ±55°; Roll: 360°; Skew: ±55° | |
| Minimum Symbol Contrast | 30% | 30% | |
| Interfaces | Micro USB, Bluetooth HID/SPP/BLE profiles | Micro USB, Bluetooth HID/SPP/BLE profiles | |
| Bluetooth Transmission Range | 50m (open space) | 50m (open space) | |
| Wireless Standards | 2.4 – 2.5GHz ISM band, compatible with Bluetooth 4.0/3.0/2.1+EDR | 2.4 – 2.5GHz ISM band, compatible with Bluetooth 4.0/3.0/2.1+EDR | |
| Memory Capacity | 1MB (capable of storing the data of over 20,000 EAN-13 barcodes) | 1MB (capable of storing the data of over 20,000 EAN-13 barcodes) | |
| Mechanical/
Electrical |
Dimensions (LxWxH) | 88 x 46 x 24.5mm | 88 x 46 x 24.5mm |
| Weight | 62g | 62g | |
| Notification | Sound, LED, vibration | Sound, LED, vibration | |
| Battery | 3.7V 900mA rechargeable Li-ion battery | 3.7V 900mA rechargeable Li-ion battery | |
| Expected Battery Life | 11 hours of continuous operation (Synchronous mode, scan and send data once per 6s) | 6 hours of continuous operation (Synchronous mode, scan and send data once per 6s) | |
| Expected Charge Time | 3.5 hours | 3.5 hours | |
| Power Adaptor (optional) | Output: DC 5V, 500mA Input: AC 100 ~ 240V, 50~60Hz |
Output: DC 5V, 500mA Input: AC 100 ~ 240V, 50~60Hz |
|
| Current | Operating Current: 75mA (Bluetooth is on) Sleep Current: 5mA |
Operating Current: 260mA (Bluetooth is on) | |
| Standby Current: | 10mA | 10mA | |
| Environmental | Operating Temperature | -20℃ to 50℃ | -20℃ to 50℃ |
| Storage Temperature | -40℃ to 70℃ | -40℃ to 70℃ | |
| Humidity | 5%~95% (non-condensing) | 5%~95% (non-condensing) | |
| ESD | ±8 KV contact discharge; ±15 KV air discharge | ±8 KV contact discharge; ±15 KV air discharge | |
| Drop | 1.2m drop to concrete | 1.2m drop to concrete | |
| Sealing | IP42 | IP42 | |
| Certification | FCC Part15 Class B, CE EMC Class B | FCC Part15 Class B, CE EMC Class B |
