Barcode Scanners

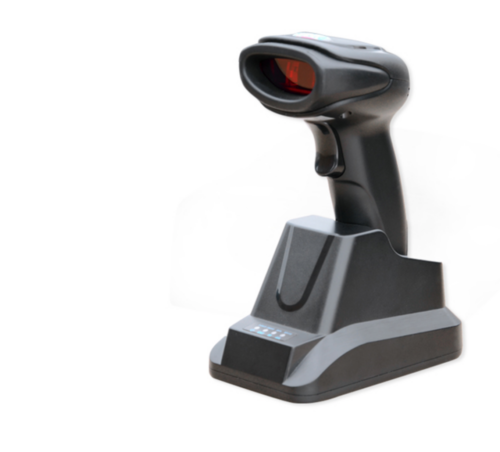

Syble XB-6266MBT 2D Wireless Bluetooth Barcode Scanner

The Syble XB-6266MBT Wireless Barcode imager.

The XB-6266MBT 2D Bluetooth Barcode Scanner is a top selling Bluetooth imager from Syble. A budget friendly Bluetooth scanner that performs as well as, and in most cases even better than many expensive competitors. Best of all, The scanner has a dedicated charger base that allows for connection via USB, or Bluetooth into IOS or Android devices.

Rated for scans in excess of 10,000 scans per month. Syble adopted the latest decoding technology with a 32 bit micro processor. This allows for scan speeds of up to 300 scans per second. The Syble XB-6266MBT scanner has a high capacity battery that allows for a full 8 hour shift.

The XB-6266MBT supports most common 1D and 2D  Barcodes such as UPC,EAN ,Industrial 2 of 5, QR Codes and PDF417, etc. Best of all the lightweight and Ergonomic design alleviates customer fatigue ,making it suitable for most operating environments especially continuous operations such as point of sale and checking out.

Model NumberXB-6266MBT
Performance Parameters
Light Sources617nm LED Aimer,White LED
Supported Symbologies1D:Codabar、Code 11、Code 39/Code 93、UPC/EAN、Code 128/EAN128、Interleaved 2 of 5、Matrix 2 of 5、MSI Code、Industrial 2 of 5、GS1 Databa
2D:QR code、Data Matrix、PDF417
Scan TypeImage COMS
Scan MethodManually/Contnuous/Automatic inductive scanning
Scan AngleYaw 60°,Rotation 360°,Pitch 60°
Precision≥5mil
Depth of scan field6-250mm
Error RateLess than 1/5 million
InterfaceUSB-HID,USB-COM
Operating FrequencyBluetooth V2.1+EDR(Class 1)
Transmission Distance≤100M(Open yard)
Storage Ability512000Bytes
Pairing ModelOne to one,Many to one,(Max 7 channels)
Receiving EndDedicated Bluetooth receiving base, Android、IOS Mobile devices
Physical Parameters
Dimensions85mm*62mm*154mm
Weight323g
MaterialABS+PC
Cable Length1.2M
Environmental Parameters
Operating Temperature-20℃~60℃
Storage Temperature-40℃~70℃
Relative Humidity5%~95%(Non-condensing)
Electrical Parameters
VoltageDC5V±5%
Current300mA
Lithium battery2200mA
Battery Working Times7h
Charging Time5h
Standby Current2mA

Click here to see the 1D version of this scanner.

Download Brochure

Download Setup sheet
