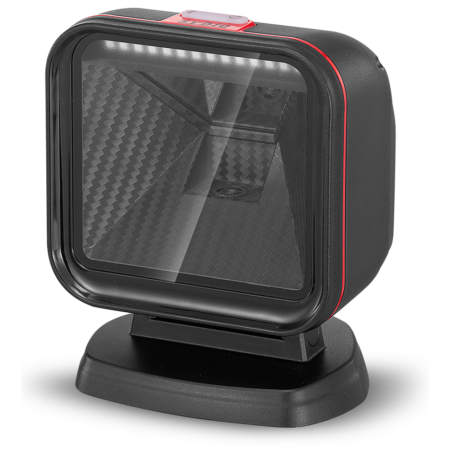

The Syble XB-PS80 2D presentation barcode scanner with superior scanning performance. Hands free operation elevates worker efficiency.
This XB-PS80 is one of Syble barcode scanner companies newest products introduced in 2020. It is 2D presentation barcode scanner with very good performance, it can read most barcode symbologies.
Especially suitable for supermarkets, retail stores, the catering industry and hospitals.
| Performance Parameters | |
|---|---|
| Light Sources | SXGA-W(Width1280*high1024) Ratio（5：4） |
| Supported Symbologies | 1D:EAN-8、EAN-13、EAN-13 2 add-on、EAN-13 5 add-on、ISSN、ISBN、UPC-A、UPC-E、Code11、Code 32、Code 39、Code 93、Code 128、Codabar、Industrial 2 of 5、Interleaved 2 of 5、Matrix 2 of 5、ISBT-128、GS1-128、GS1 DataBar（RSS14）、GS1 DataBar Limited、GS1 DataBar Expanded. |
| 2D:PDF417、MicroPDF417、QR-code、MicroQR, Data Matrix、QR、Aztec. | |
| Scan Range | 5mil(Code39) 1cm~15cm; UPC-13mil 1cm~33cm; 20mil(code39) 1cm~40cm; 20mil(QR Code) 1cm~28cm |
| System compatibility | Linux、Android、Windows XP、7、8、10、MAC |
| Minimum recognition accuracy | Code 39 4mil |
| Barcode Type | 1d or 2d barcodes for Paper or Film；1d and 2d for screen ,like Phone tablets |
| Motion tolerance | 3.8meters/second |
| Scan Mode | Automatic continuous reading mode |
| Support Keyboard | Support Multi-Language |
| Barcode output editing | Support for adding suffixes |
| Print contrast | 0.2 |
| Recognition angle range | Turn angle ±360°, elevation angle ±60°, declination angle ±70° |
| Mutual Move | Led: Red and blue bi-color indicator: red light reading code, blue light power indicator. |
| Beeper: Startup prompts, reading tips. | |
| Keys (touch keys): Key Switch and 2d barcodes. | |
| Interfaces | USB(Drive - Free)、RS232 |
| Physical Parameters | |
| Dimensions | 115mm*75mm*140mm |
| Weight | 390g |
| Material | ABS+PC |
| Cable Length | 180CM(±3CM) |
| Environmental Parameters | |
| Operating Temperature | -20℃~55℃ |
| Storage Temperature | -20℃~60℃ |
| Relative Humidity | 5%~95% RH(non-condensing/non-freezing) |
| Shock Resistance: | Withstands three times1 . 5 meters drops to concrete |
| Waterproof and Dustproof | IP54 standard |
| Ambient Ligh | 0-70000LUX |
