X-2300 Label Printer

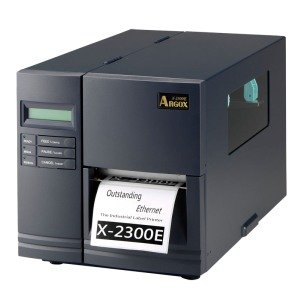

The Argox X-2300 label printer, High Performance Label Printer

The Argox X-2300printer is a high-performance, easy-to-use industrial barcode printer that has been replaced with the Argox IX4-250 Click on the red print to be re-directed.

The durable Argox X-2300 label printer features direct thermal/thermal transfer printing with 203dpi resolution, up to 6ips printing speed, for heavy duty labeling demand’s. The 32-bit CPU, 8MB Flash and 16MB SDRAM onboard memory assure high quality printing. Comms interfaces include parallel port, RS-232, USB, PS/2 keyboard for easy connectivity. A SNMP trap function allows for the monitoring of network attached devices in real-time. The Argox X-2300’s standard PS/2 interface allows for connection to input device such as a keyboard or scanner for stand-alone operation.

The LCD allows for easy installation and operation, and a built-in RTC lets you print the time on labels. The flexible Argox X-2300 label printer has both an adjustable reflective and a transmissive double sensor system that ensures precise label detection for most types of media. A switch lets you use either inside or outside coated ribbons.

The Argox X-2300 label printer offers the latest high-performance features, flexibility, and ease of operation, deliver exceptional value all at a competitive price.

Specifications:

For heavy duty labeling, and a LCD display for easy operation
32-bit CPU and 8MB Flash; 16MB SDRAM memory is standard
Multiple comms interfaces – Parallel, RS-232, USB, PS/2 Keyboard
Auto Media Calibration function
SNMP trap function for simple network management
Built in Real Time Clock (RTC)
PPLA/PPLB/PPLZ emulations available
(Movable) Reflective& (Movable) trans-missive sensors
Ribbon wound ink-out or ink-in available (Switchable)

Printing method – Direct Thermal & Thermal Transfer
Printing resolution – 203dpi(8 dots/mm)
Printing Speed – 2~6 ips(51~152mm/s)
Printing Length – Max 100”(2540mm) / Min 0.2”(5mm)
Printing Width – MAX 4.09
Memory – 16MB DRAM(13MB user available), 8MB Flash ROM(6MB user available)
CPU Type – 32 bit RISC microprocessor
Sensors – Media gap & black line Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable)
Head open switch / Ribbon end sensor
Communication Interface – Centronics Parallel, RS-232 serial, USB, PS/2 keyboard
