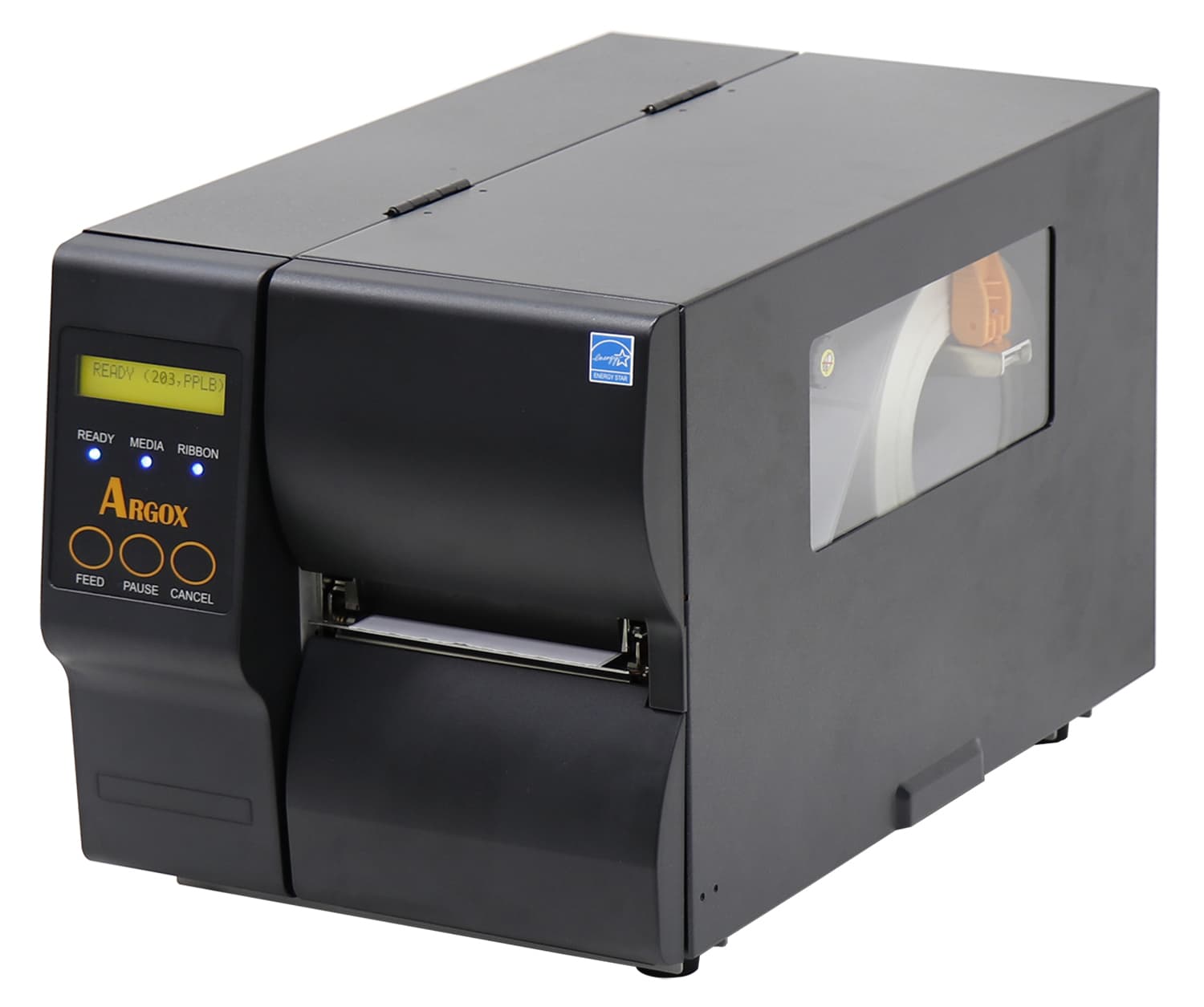

The Argox iX4 label printer is a great industrial printer, designed to fit your considerable printing needs.
With new mechanical design, Argox iX4 series supports a large 8.26-inch outer diameter label roll and up to 450-meter ribbon capacity.
Featuring 8 ips print speed, even print with the highest speed, it can still maintain the perfect print quality.
The Argox iX4 series has built-in Ethernet, Dual USB hosts, USB device, RS-232, and it can be expanded with Wi-Fi, GPIO card/Parallel port.
- For high volume printing.
- With new mechanical design, Argox iX4 240 supports a large 8.26-inch outer diameter label roll and up to 450-meter ribbon capacity.
- Printing speed upgrade to 6 inches/sec.
- Featuring 6 ips print speed, even print with the highest speed, it can still maintain the perfect print quality.
- Multiple interfaces
- The iX4-240 has built-in Ethernet, Dual USB hosts, USB device, RS-232, and it can be expanded with Wi-Fi, GPIO card/Parallel port.
Click here to go to the Argox free software download page.
*Available in both 203 dpi and 300dpi
| Printing method | Direct Thermal & Thermal Transfer | ||
| Printing resolution | 203 dpi (8 dots/mm) | ||
| Printing Speed | 6 ips | ||
| Printing Length | Max 100”(2540 mm) | ||
| Printing Width | 4.25”(108 mm) | ||
| Memory | 32 MB SDRAM, 16MB Flash ROM (USB storage up to 32GB) | ||
| CPU Type | 32 bit RISC microprocessor | ||
| Sensors | Media Transmissive sensor x 1 (movable) / Media Reflective sensor x 1 (movable) & Head open switch / Ribbon end sensor | ||
| Operation Interface | Standard: LED indicator x 3, Button x 3 Factory | ||
| Communication Interface | Standard: Ethernet, dual USB hosts, USB device, RS-232 Option: Wi-Fi (IEEE 802.11 b/g/n), GPIO, Parallel | ||
| Fonts | Internal character sets standard support. Soft fonts are downloadable | ||
| 1D Barcodes | UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked | ||
| 2D Barcodes | QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode | ||
| Graphics | PPLA: PCX, BMP, IMG, HEX,GDI PPLB: PCX, BMP, Binary raster, GDI PPLZ: GRF, Hex, GDI | ||
| Software – Label editing | Windows Driver (Windows XP/Vista/Win7/Win8/Win10), BarTender® from Seaguall Scientific | ||
| Software – Utility | Printer Tool | ||
| Media Type | Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper | ||
| Media | Max. width:4.48”(114mm). Min. width: 1” (25.4 mm). Thickness: 0.0025”~0.01” (0.0635mm~0.254mm) 8.26”(210mm)OD on a 3”(76mm) ID core. 7”(177.8mm) OD on a 1.5”(38mm) ID core. | ||
| Ribbon | Ribbon width: 1” (25.4 mm)~4.4”(112mm). Length:max 450m Wax, Max OD 3.2” (81.3mm). Core size ID 1”(25.4mm). Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect) Fonts & Symbologies | ||
| Dimensions | W 250 mm x H 263 mm x D 418 mm | ||
| Weight | 24 lbs (11 kg) | ||
| Power Source | Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz | ||
| Operation Environment | Operation Temperature: 40˚F~100˚F (4˚C~38˚C). 10%~90% non-condensing. Storage Temperature: -4˚F~122˚F (-20˚C~50˚C) | ||
| Optional Items | Full Cutter、Partial Cutter、Peeler、External media stand、WLAN | ||
| Agency Listing | CE, CB, cULus, FCC, ICES, Energy Star |
