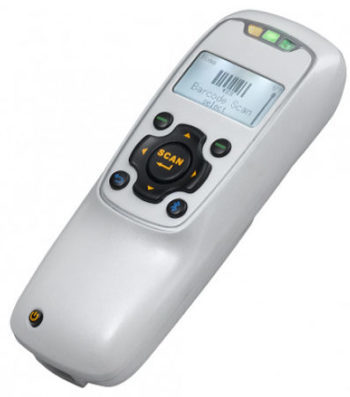

Mindeo MS-3590 Bluetooth Scanner

MS-3590 Programmable handheld Data Terminal

The Mindeo MS-3590 Portable Data Terminal for use on Android devices and mobile phones, Works great with Windows devices as well. Use as a Keyboard entry device, or program it for batch mode use, the choice is yours. This barcode scanner comes with a simple to use software development kit, which will allow you to easily customise your application to your unique requirements.

Andtech is an official distributor of the entire range of Mindeo barcode scanners.

Feautures:

A lightweight data terminal
Easy to program: A SDK based on C is provided including user-friendly IDE & fully functional APIs
Compact size and portable design contributes to excellent mobility
Bluetooth protocol supports both HID and SPP, and is compatible with iOS,
Android and Windows OS
Support database importing and querying
Multi-line screen (128 x 64) with backlight
High capacity storage: 16MB in Batch mode, 96MB in U-Disk mode
Battery (1900mAH) life for 9+ hours based on 1 scan & transmit per 5 seconds/ 12+ days standby
Read all major 1D and 2D symbols
Read symbols from mobile phones/ inverse symbol/ DPM symbol

Download the brochure

Download the Quick User Guide

Download the User Manual

Specifications
Operating current	(standby); 150mA (scanning); 180mA (transmitting)
Standby time	Over 7 days
Operating time	5.5 hours
RF module	Bluetooth V2.0+EDR, Class II
Interface	Bluetooth Scanner – Human Interface Device (HID) Keyboard – Serial Port Profile(SPP), Operating as either Master or Slave USB Wired Scanner – USB HID Keyboard – USB Virtual COM U Disk (With wich barcode data is stored in a text file rather than being transmitted via Bluetooth or USB
Data Storage	16MB (Standard Batch, Out of Range Batch mode), 1,118,480 barcodes of 15 bytes each. 96 MB for U Disk mode, 1,509,440 barcodes of 15 Bytes each
Working range	30 meters, line of sight
Radio link	2.4 ~ 254GHz (ISM Band), Bluetooth V2.1 +EDR, class 2
Dimensions	12.5cm H × 4.6cm W × 3.1 cm
Weight	128g
Key & trigger	1 million presses
Display LCD	Monochrome display (128 × 64)
Backlight	LED backlight
Color	White / Black / Customization
Battery	1900 mAh Lithium-ion battery
Charge time	Fully charged (>80%) in 4 hours
Case material	ABS
Light source
Scan rate	100±10 times /sec
Decode capability	1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, (Discreate 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessy, UK/Plessy, China Post, China Finance, GS1 DataBar (formerly RSS) Variants 2D: PDF417, MicroPDF417, QR Code, DataMatrix, Han Xin Code, Aztec Code
Keyboard layout	USA, Turkish F, Turkish Q, French, Italian, Spanish, Slovak, Denmark, Japanese
Interface supported	USB Keyboard, USB virtual COM
Indicator	Beeper, LED, LCD
Operating mode	Handheld
Programming method	Manual (reading special barcode), Onn screen (pressing special keys)
Firmware upgrade	Online via USB interface
Temperature	0° to 55°C , Operating; -40° to 60°C , Storage
Humidity	5% to 95% (non-condensing)
Decoding depth	3 mil: Code 128, 15-35 mm 5 mil: Code 39, 0.8-55 mm 13 mil: 0.7-165 mm 6.7 mil: PDF417, 0.0-75 mm 10 mil: DM, 0.0-11.5 mm 20 mil: QR, 0.0-19.5 mm
Safety	Laser safety: EN60825-1, Class 1 EMC: EN 55022, EN 55024 Electrical safety: EN 60950-1 Illumination : 0 – 10,000LUX Drop resistance: 10 times 1.2m drops to concrete Protection class: IP65 Environmental RoHS compliant
