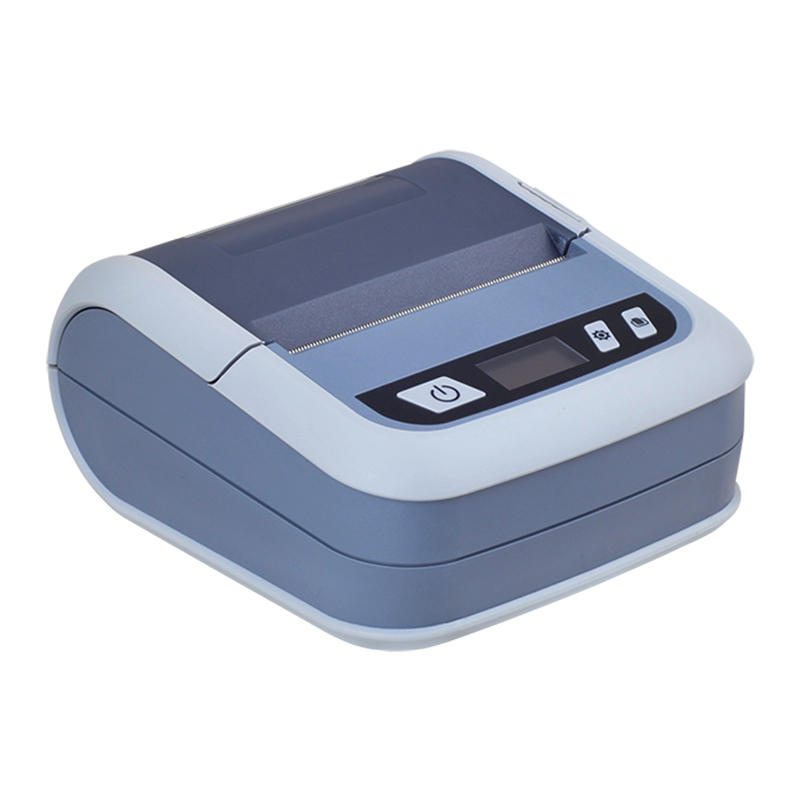

The Printer XP-P323B Mobile label printer and Receipt printer features an impressive 72mm print width. The XP-P323B printer sports a fashionable design and superior quality, with an LCD screen making it easy to operate.
The 2500mhA large capacity battery, slows for long high performance over a full 8 hour shift. Printing at a MAX speed of 70 mm / sec.
The printer carries the following certifications. CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI
| Specifications | |
|---|---|
| Model | XP-P323B |
| Printing Features | |
| Resolution | 203 DPI |
| Printing method | Direct Thermal |
| Max.print speed | Max. 70mm (2.7") / s |
| Max.print width | 72 mm (2.8") |
| Max.print length | 1778 mm (70") |
| Media | |
| Media type | Continuous, gap, black mark |
| Media width | 20 mm ~ 76 mm |
| Media thickness | 0.06 mm ~0.254 mm |
| Label roll diameter | 50 mm |
| Performance Features | |
| Processor | 32-bit CPU |
| Memory | 8MB Flash Memory/ 8MB SDRAM |
| Interface | Stardard version: USB+Bluetooth Optional:USB+WIFI |
| Screen | OLED (1.3") Resolution:128*64 pix |
| Sensors | ①Gap sensor |
| ②Cover opening sensor | |
| ③Black mark sensor | |
| Fonts/Graphics/Symbologies | |
| Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. |
| 1D bar code | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, |
| EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST | |
| 2D bar code | PDF-417, Maxicode, DataMatrix, QR code,Aztec |
| Rotation | 0°、90°、180°、270° |
| Emulaion | TSPL、EPL、ZPL、DPL、CPCL、ESC/POS |
| Physical Features | |
| Dimension | 124×108×61mm (D×W×H) |
| Weight | 357 g |
| Reliability | |
| Print head life | 30 km |
| Software | |
| Operation system | Windows/Android/iOS |
| SDK | Windows/Android/iOS |
| Power supply | |
| Output | DC 9V2A |
| Battery life | 7.4V/2500mAh |
| Environmental Conditions | |
| Operation environment | 5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% no condensing |
| Storage environment | -40 ~ 60°C（-40~140°F），Humidity: 10 ~ 90% no condensing |
