Sunlux XL-3100 Handheld

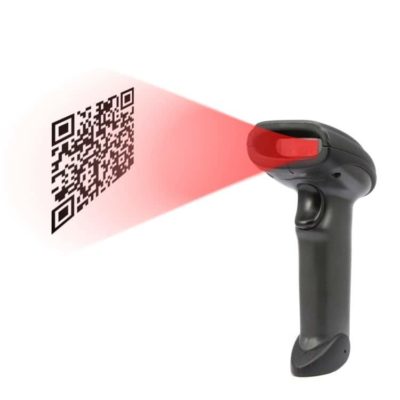

Sunlux XL-3100 2D Handheld Barcode Imager.

The Sunlux XL-3100 Imager reads both 1D and 2D barcodes, Reading directly form a computer or cellphone screen is no problem for this scanner.

Features:
– Read all major 1D and 2D barcode symbologies.
– Reliable safety design with CE, EMC, RoHS, Class I laser safety.
– Ergonomic, snappy and stylish design.
– Suit for all POS systems.
– Read inverse barcode symbology.
– Read barcode symbology on phone screen.
– Antiknock design: withstand 1.5M drops.
– Supporting the RS232, PS2 and USB interface.
– Service life of button reaches up to 50 million times.
– Support 20 countries keyboard languages.

Performance:
– Image Sensor : CMOS, gray scale.
– Image size : 752×480 pixels.
– Interface : RS232, USB HID-KBW, USB Data Pipe, USB COM Port.
– Precision : ≥4mil.
– Depth of Scan Field : 35mm-210mm.
– Symbologies (1D，2D):
1D：EAN-8，EAN-13，UPC-A，UPC-E，Code 39，Code 93，Code 128，EAN128，Codaber，Industoal 2 of 5，Interleave 2 of 5，Matrix 2 of 5，MSI，Chinese postcode etc.
2D: PFD417, QR Code (Model/2) DataMatrix (ECC200, ECC000, 050, 080, 100, 140), Aztec, Mxicode, etc.
– Print Contrast Signal : ≥30％.

Physical Parameters:
– Dimensions : L * W * H：95mm * 70mm * 160mm.
– Weight : 128g.
– Material : ABS+PC.
– Cable : 2.5 m Straight.
