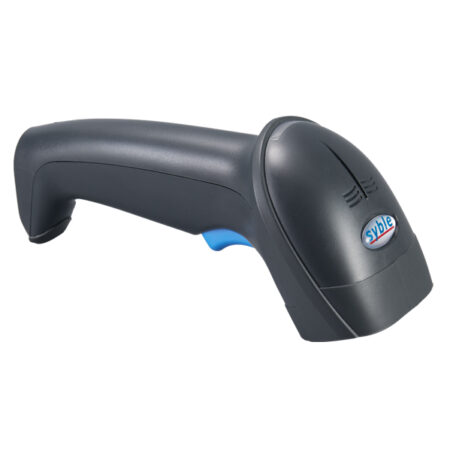

Syble XB-2055 Barcode Scanner

The affordable Syble XB-2055 Laser Barcode scanner.

The XB-2055 1D Laser Barcode Scanner is our top selling product from Syble. A budget friendly scanner that performs as well as, and in most cases even better than many expensive competitors.

Rated for scans in excess of 10,000 scans per month. Syble adopted the latest decoding technology with a 32 bit micro processor. This allows for scan speeds of up to 300 scans per second.

The XB-2055 supports most common 1D Barcodes such as UPC,EAN ,Industrial 2 of 5 etc. Best of all the lightweight and Ergonomic design alleviates customers fatigue ,making it suitable for most operating environments especially continuous operations such as point of sale and checking out.

This Laser Barcode Scanner incorporates three interfaces which include USB ,RS232 and Keyboard Wedge. The detachable cable allows the customer to switch interfaces by simply changing the cable. Features a Fast Scan rate of up to 300 scans per sec.

Lightweight and Ergonomic design three option connect interfaces to host device (USB RS232 KB Wedge) Reads most standard 1D Barcodes Detachable cable easy to switch

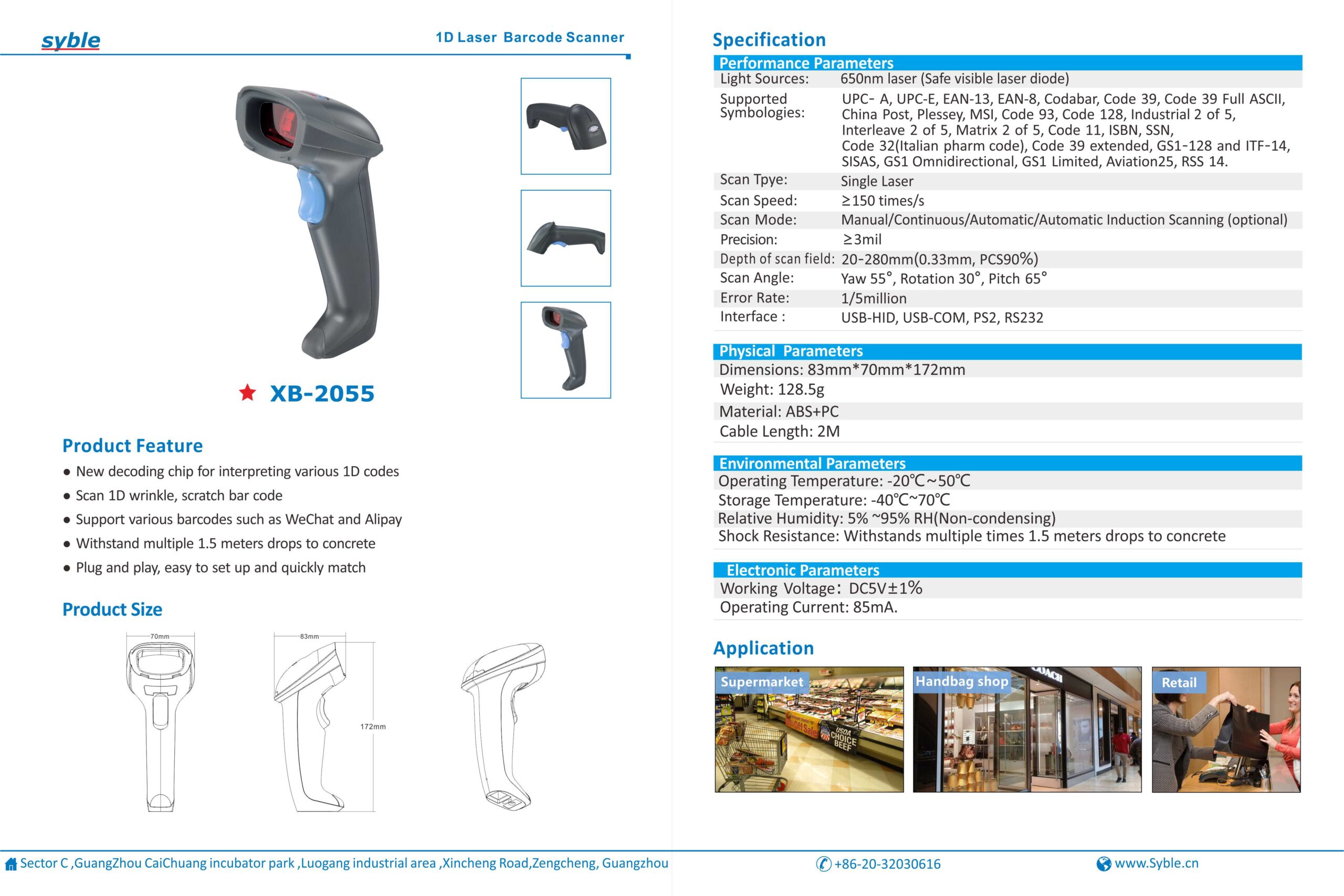

Model Number XB-2055
Performance Parameters
Light Sources650nm laser(Safe visible laser diode)
Supported SymbologiesEAN-8,EAN-13,UPC-A,UPC-E,CODE39,CODE93,CODE128, EAN128, Codebar, Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,China Post Code and all 1D barcodes ects
Scan TypeSingle Laser
Scan Speed:≥300 times/s
Scan MethodManually/Automatic inductive/Successive Scanning (Optional)
Scan AngleYaw 55°,Rotation 30°,Pitch 65°
Precision≥3mil
Depth of scan field0-280mm(0.33mm,PCS90%)
Error RateLess than 1/5 million
InterfaceUSB-HID,USB-COM,PS2,RS232
Physical Parameters
Dimensions83mm*70mm*172mm
Weight205g
MaterialABS+PC
Cable Length2M
Environmental Parameters
Operating Temperature-20℃~50℃
Storage Temperature-40℃~70℃
Relative Humidity5%~95%(Non-condensing)
Drop/Shock Resistance:Withstands multiple times 3meters drops to concrete
Electrical Parameters
VoltageDC5V±1%
Current85mA(Operating)

Click here for the 2D version of this scanner.

Download Brochure

Download Scanner setup
