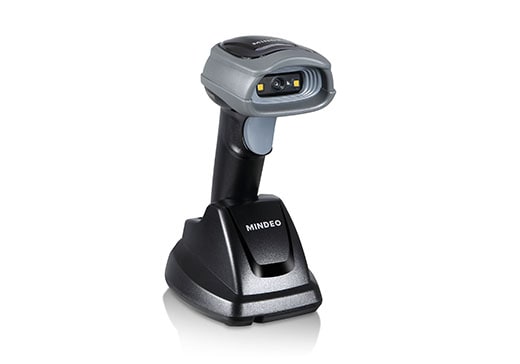

The Mindeo CS2290 wireless barcode scanner is the latest innovation to by Mindeo. The scanner is possibly the lowest cost scanner with the same features as the most expensive brands on the market. This scanner has to be tested in order to appreciate the quality and functionality that it offers. Available in both (Mindeo CS2190) 1D and (Mindeo CS2290) 2D versions.
With a working range of 100meters, The Mindeo CS2290 is perfect for operations where a cable would get in the way. It has a small footprint which allows the scanner to be left on a desk or counter without using valuable space.
Features
– Stylish and ergonomic design, small base saves installation space
- Read all common 1D/2D barcodes from paper labels and electronic screens
- Working range reaches up to 100 meters
- Support point-to-point and multi-point data transmission
- Support batch mode capability (3,000 EAN-13 barcodes)
- Built-in rechargeable & replaceable battery, one full charge supports scanning for 46 hours or standby for 4.5 days
- Brand-new, easy wireless communication setting method guarantees convenient operation
Handheld unit
| Specifications | 430.0 ~ 431.9 MHz, 433.3 ~ 434.7 Mhz withadaptive frequency hopping. |
| Radio Link | 100 Meters ( Open air ) |
| Dimensions | 500 mLength x width x depth : 90.2 x 70 x 180 mm |
| Weight | 210 g |
| Color | Grey |
| Indicator | LED, Beeper, Vibrator |
| Operating mode | Handheld |
| Programming method | Manual (reading special barcode) |
| Program upgrade | Using Flash Utility Software, Cradle unit is required |
| Input Voltage | 5 ± 0.25 VDC |
| Current | 20mA (Standby), 350mA (Scanning) |
| Battery | 1400mAh Lithium-ion battery |
| Charge Time | 4 Hours |
| Standby Time | 4.5 Days |
| Working Time | 46 hours ( 1 scan per 5 seconds ) |
| Image Size | 1280 x 800 pixels |
| Field of view | Horizontal: 42°, vertical 26.5° |
| Scanning Angle | ±70°, ±75°, ±360° (Skew, Pitch, Roll) |
| Print Contrast | 20% minimum reflectance difference |
| Decoding Capability | 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ascii, code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codeabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessy, China Post, China Finance, GS! Databar (Formerly RSS) varaiants2D: PDF417, MicroPDF417, QR code, dataMatrix, Han Xin code, Aztec Code |
| Minimum Resolution | HD: 1D (Code 39):3 mil, 2D(QR):5 mill |
| Decoding Depth | High density series Standard Range (HD) series (SR) 3 Mil Code39 (3 chars) 10mm – 61mm / 4 Mil Code 128 (9 chars) 5 mm – 88mm 55mm – 106 mm 5 mil Code39 (3 chars) 0mm- 108mm 43mm – 141mm 10 mil Code39 (3 chars) 0mm – 167mm 0mm – 310mm 13 mil UPC (6 chars) 0mm – 179 mm 0mm – 335mm 20 mil Code39 (1 char) 10mm – 253mm 8mm – 480mm 5 mil QR (40 chars ) 7mm – 65mm / 6.7 mil PDF417 ( 20 chars) 0mm – 105mm 37mm – 145mm 10 mil QR (20 chars) 0mm – 134mm 0mm – 168mm 20 mil QR( 20 chars) 0mm – 215mm 0mm – 345mm |
| Temperature | 0° to 50°C , Operating; -40° to 60°C , Storage |
| Humidity | 5% to 95% (non-condensing) |
| Safety | EMC: EN 55022, EN 55024 Electrical safety: EN 60950-1 Photobiological Safety: EN62471:2008 Illumination: 0 ~ 100,000 Lux Protection class: IP52 Drop resistance: Multiple 1.5m drops to concrete |
Cradle
| Input Voltage | 5 ± 0.25 VDC |
| Current | 60mA (Standby), 500mA (Charging) |
| Cable | Straight 2.0m (PS/2) / Straight 1.5m (USB) / Straight 2.0m (RS-232) |
| Dimensions | Length x width x depth : 118 x 89.5 x 74 mm |
| Weight | 140g (without cable) |
| Indicator | LED |
| Programming method | Manual (reading special barcode) |
| Program upgrade | PC online Using Flash Utility Software |
| Temperature | 0° to 50°C , Operating; -40° to 60°C , Storage |
| Humidity | 5% to 95% (non-condensing) |
| Drop Resistance | Unit functions normally after repeated 1.5m drops to concrete |
