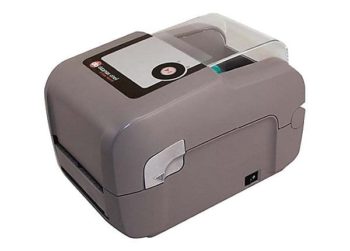

The Datamax E-Class TM Mark III is a family of compact desktop thermal printers designed for a wide variety of industries and applications that require a reliable and cost-effective barcode printer. Datamax-O’Neil by Honeywell applied its expertise to provide an entry level printer that has the features and reliability normally found in more expensive printers. The E-Class Mark III is affordable to own, easy to use and economical to operate.
We’ve made the Datamax E-Class Mark III easy to use, with quick-loading media and an interactive LCD screen. Users can also notice a substantial reduction in their daily operational costs thanks to the E-Class Mark III’s larger media and ribbon-roll capacity.
The Datamax E-Class Mark III is one of the best values on the market.
Why pay for features you don’t need? The E-Class is available in three distinct models that offer the features necessary to meet the broadest range of customer requirements. A breakdown of features for each model is provided in the table on the next page.
The Datamax E-Class was carefully designed to maximize your investment value by offering a competitive purchase price, a battery pack option for mobility, a double-walled construction for increased durability and a proven design for long-term reliability.
Click Here to download the brochure.
MECHANICAL
Dimensions
187 mm x 203.5 mm x 282 mm (7.4 in x 8.01 in x 11.1 in)
Weight
2.4 kg (5.3 lbs)
Color
Pantone® warm gray
Construction:
Split case with rear concentric hinge; double-walled high-strength thermoplastic; clear wraparound media window
ENVIRONMENTAL
Operating Temperature
4°C to 35°C (40°F to 95°F )
OPTIONS
Bluetooth® v2.0 (Professional model only) Cutter w/Sensor Field (Not Available on Basic) High Resolution (300 dpi) Label (Peeler) Dispenser w/Sensor Field Thermal Transfer (Includes 1 in Ribbon Adaptors) Wireless LAN (Professional Model Only)
POWER SOURCE
Electric:
Auto-ranging power converter integration
ACCESSORIES
Auto-Loading Chute Battery Pack External Media (Large Roll) Holder External Rewinder
PRINT SPECIFICATIONS
Printer Type:
Direct thermal; optional thermal transfer
Print Length Range:
9.5 mm (0.375 in) to 2514 mm (99 in)
Color
Pantone® warm gray
Resolution
8 dots/mm (203 dpi)Optional 12 dots/mm (300 dpi)
MEDIA COMPATIBILITY
Media Type:
Label/Tag Roll
Width Range:
19 mm (0.8 in) to 112 mm (4.4 in)
Thickness Range:
0.06 mm (0.003 in) to 0.25 mm (0.01 in)
Winding:
Wound in or out
Ribbon:
Maximum outside diameter: 65 mm (2.6 in) Core diameters: 13 mm (0.5 in) or 25 mm (1 in) – requires provided adaptors M inimum core widths: 109 mm (4.3 in) for 0.5 in diameter or 25 mm (1 in) for 1 in diameter M aximum core width: 109 mm (4.3 in) Width range: 25 mm (1 in) to 109 mm (4.3 in) Winding: coated-side-in or coated-side-out
Index Sensor Range:
Transmissive (top and bottom sensor combination): gap, hole or notch: Basic: 5 mm (0.2 in) right of CL A dv/Pro: 42 mm (1.7 in) left of CL to 34 mm (1.3 in) right of CL Reflective (bottom sensor only) bar, hole or notch: Basic: 5 mm (0.2 in) right of CL, A dv/Pro: 58 mm (2.3 in) left of CL to 34 mm (1.33 in) right of CL For optimum print quality and printer performance, use certified Honeywell media supplies
AGENCY APPROVAL
Contact your Honeywell sales representative for the most recent list of agency approvals.
COMMUNICATION
Communication Ports (Standard):
Serial RS232, USB 2.0, Parallel Bi-directional, 10/100 BaseT Ethernet, USB Host
Communication Ports (Optional):
802.11 a/b/g, Bluetooth® v2.0
802.11 a/b/g:
Network standard: IEEE 802.11 a/b/g; wireless access modes: infrastructureand ad-hoc
Network Support:
DHCP, TCP/IP, UDP, DNS, BOOTP
WARRANTY
Standard Printer Warranty(When used with approved supplies):
1 year (including platen roller and installed options)
Standard Printhead Warranty(When used with approved supplies):
1 year or 25,400,000 mm (1,000,000 in), whichever comes first
Extended Warranty:
Contact your Honeywell sales representative for extended warranty options available through Honeywell Repair Services
SOFTWARE
NETira™ CT: Configuration tool; NETira™ RM: Remote Managment; NETira™ LD: Label Design Software; Drivers: Windows® XP, Windows® Vista, Windows® NT, Windows 7®, Windows 8 (32- & 64-bit)
Universal Printer Command Language Support:
PL-Z (Zebra), PL-B (Boca), PL-I (Intermec), PL-E (Eltron), XML-Enabled
Applications & Drivers
Windows® XP, Windows® Vista, Windows® NT, Windows 7®, Windows 8 (32- & 64-bit)
SUPPORTED BARCODE SYMBOLOGIES
Downloadable Font Types:
True-Type, AGFA® Intellifont™, Bitmap
Barcodes:
Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5 (I 2 of 5), Code 128, EAN-13, EAN-8, HBIC, Codabar, Interleaved 2 of 5 with a module 10 checksum, Plessey, Interleaved 2 of 5 with a module 10 checksum & shipping bearer bars, 2-digit UPC addendum, 5-digit UPC addendum, Code 93, Postnet, UCC/EAN Code 128, Telepen; 2D Symbologies: UPS MaxiCode, FIM, PDF-417, DataMatrix, QR Code, Aztec, Code 128 with auto Subset Switching, GS1 Databar (replaced RSS), TCIF Linked Bar Code 3 of 9 (TLC39), MicroPDF 417
Resident Fonts
Ten alphanumeric fonts from 2 (0.08 in) mm to 6 mm (0.25 in) including OCR-A, OCR-B, CG Triumvirate™ smooth font from AGFA®
Character Sets
Modified IBM® Code Page 850; includes characters for English and most European, Scandinavian and Spanish-speaking countries; 50 Resident Code Pages
Font Expansion/Rotation:
All fonts expandable vertically and horizontally up to 24x; fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°
Graphics Supported:
pcx, .bmp, .img format files
Reversible Field/Mirror Image:
Any font or graphic field can be printed as a normal or reverse image
