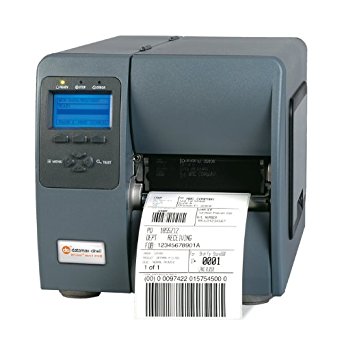

The smaller footprint is ideal for users who need the power of industrial printers but must consider space limitations. The M-Class is a perfect solution for warehouse, healthcare, logistics and retail applications. The printer family’s modular design makes maintenance and part replacement easy. And the exible design allows a variety of options to be upgraded in the field.
Datamax M-Class label printers reduce the total cost of ownership with easy- to-maintain components. They offer you a broad range of connectivity to meet diverse application requirements and easily integrates into most networks. With an easy-to-navigate LCD graphics display for menu and printer function control, they’re designed for any level of user. Support of UHF or HF RFID con gurations for current or future requirements protects your printer investments.
The high-quality features, performance and rugged reliability make the Datamax M-Class Mark II family a better value than most printers on the market. And you can use the Datamax M-Class Mark II label printers in a wide variety of applications with a range of media compatibility, connectivity, emulation support and options, including RFID support. They’re easy on your budget, while providing industrial printing performance in a small footprint.
Please click here to download the brochure.
MECHANICAL
Dimensions (HxWxD):
259 mm x 257 mm x 462 mm
(10.21 in x 10.10 in x 18.19 in)
Weight:
12.2 kg (27.0 lbs)
Operating Temperature:
4°C to 35°C (40°F to 95°F)
Clock:
On-board real-time clock (M-4210 & M-4308)
Display:
128 x 64 LCD backlit graphics display
Construction:
Solid Aluminum die cast Frame with Metal cabinet, clear side window to view monitor media supply levels
ENVIRONMENTAL
Operating Temperature:
4°C to 35°C (40°F to 95°F)
OPTIONS
Ethernet-Wired LAN 10/100 Font Support ILPC (Hangul, Simplified Chinese, and Kanji) Internal Rewinder Label-Present Sensor MCL Enabled (M-4210 and M-4308 only) Peel-and-Present 38 mm (1.5 in) min. label length) Revolving Convertible Hub 76 mm (3 in)/40 mm (1.5 in) (M-4206 only) RFID -UHF & HF (M-4210 and M-4308 only) Standard Cutter Thermal Transfer (field or factory installed) USB Host Interface (M-4210 and M-4308 only) Wireless 802.11b/g
POWER SOURCE
Electric:
Auto-sensing 90-132 or 180-264VAC @ 47-63Hz
ACCESSORIES
External Rewinder Serial Data Cable
PRINT SPECIFICATIONS
Max Print Width:
108 mm (4.25 in)
Print Speed:
M-4206; 152 mms (6 ips), 8 mmps (203 dpi)
M-4210; 254 mms (10 ips), 8 mmps (203 dpi)
M-4308; 203 mms (8 ips), 12 mmps (300 dpi)
MEDIA COMPATIBILITY
Roll-Fed:
203.2 mm (8.0 in) O.D. on a 76.2 mm (3.0 in) core; 177.8 mm (7.0 in) on a 38.1 mm (1.5 in) core; fan-fold stock: accepted from rear and bottom of printer; die-cut or continuous labels; perforated or continuous tag/ticket stock
Media Thickness Range:
0.0635 mm (0.0025 in) to 0.254 mm (0.01 in)
Media Width Range:
19 mm (0.75 in) to118.1 mm (4.65 in)
Minimum Media Length:
Tear-off and rewind modes: 6.35 mm (0.25 in); peel and cutter modes: 25.4 mm (1.0 in)
Standard Ribbon Lengths:
300 m (984 ft),450m (1476 ft);
Ribbon Width Range:
25.4 mm (1.0 in) to114.3 mm (4.5 in);
Media Sensing:
“See through” for liner-backed die-cut labels and tags: reflective sensor for black-mark label media
Label Backfeed:
For use with optional cutter or present sensor
AGENCY APPROVAL
Contact your Honeywell sales representative forthe most recent list of agency approvals.
COMMUNICATIONS INTERFACE
Communication Ports (Standard):
SerialRS232, parallel bi-directional, USB 2.0compatible
Communication Ports (Optional):
Ethernet-wired LAN 10/100, wireless 802.11b/g
WARRANTY
Printer (When used with approved supplies:
1 year
Printhead (When used with approved supplies):
1 year or 25,400,000 mm (1,000,000 in), which ever comes first
Extended Warranty:
Contact your Honeywell sales representative for extended warranty options available through Honeywell Repair Services
SOFTWARE
Printer Command Languages:
PL-Z (Zebra),PL-I, (Intermec), PL-B (Boca)
DMX Config:
Complete printer setup Utility, DMX NetManager, embedded network web pages, Windows® Drivers – NT, XP, Vista
Firmware:
Universal
SUPPORTED BARCODE SYMBOLOGIES
Graphics Supported:
.pcx, .bmp, .img and ASCII format files
Linear Symbologies:
Code 3 of 9, UPC-A,UPC-E, Interleaved 2 of 5, Industrial 2 of 5, Std 2 of 5, Code 11, Code 93, Code 128, EAN-8,EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5digit addendums, Postnet, UCC/EAN Code128, Telepen, Planetcode, FIM, USPS-4 State;
Resident Fonts:
Ten alphanumeric fonts from2.5- to 23-point size, including OCR-A, OCR-B,CG Triumvirate™ smooth font from AGFA®
Character Sets:
More than 50 resident charactersets; Unicode/UTF8 support
Memory:
16MB DRAM/8MB Flash
2D Symbologies:
MaxiCode, PDF417, USD-8, Datamatrix, QR Code, Codeablock, Code 16k, Aztec, TLC 39, Micro PDF417, GS1 Databar
Downloadable Font Types:
True-Type, Bitmap
Font Expansion/Rotation:
All fonts expandable vertically and horizontally up to 24x; fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°
Reversible Field/Mirror Image:
Any font or graphic field can be printed as a normal or reverse image
