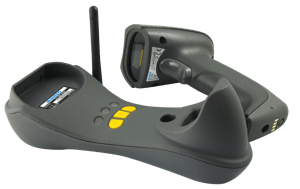

Mindeo CS-3290 Cordless Scanner

The Mindeo CS-3290 Cordless laser barcode scanner is perfect for use where cables may get in the way.

Typically used in nurseries, Warehouses and Industrial environments. The Mindeo CS-3290 is the best value for money cordless scanner you can buy.

Mindeo CS-3290 Features

Customized decode resolution model of 5mil or 3mil
Decodes all major 1D barcode symbologies including GS1 DataBar
433MHz ISM frequency band
Strong penetrating power for obstacles, up to 200 meters working range (open air)
Two kinds of wireless network topology, point coordination, and distributed coordination, are provided to match different environments, e.g. a place where mass data transmission at short intervals is needed, or mass scanners (up to 2000 pieces) operating simultaneously without disturbing each other
1300mAh Li+ battery: up to 16,000 scans per charge
Built-in self-protected charging circuit
Batch modes: out of range notice; 2,000 barcodes storage
Reliable safety design: handheld case made of fire-resistant material
Scratch and abrasion resistance, The laser window is made of chemically tempered float glass
Easy firmware upgrade
Intelligent barcode sorting technology: different scanners within one cluster can provide results to different software applications in one computer
Flexible software customization
Customized RF mode of 2.4GHz Bluetooth is available

Download the brochure

Mindeo CS-3290 Specifications

Handheld Unit	Mindeo CS-3290
Dimensions	17.0cm H × 7.0cm W × 8.3cm D
Weight	201 g
Color	Gray
Battery	1400 mAh Lithium-ion battery
Charge time	Fully charged (>80%) in 3.5 hours
Case material	Fire-resist ABS+TPU
Light source	650 nm visible laser diode
Decoding rate	200 times/sec
Scanning angle	±60°, ±65°, ±42° (Skew, Pitch, Roll)
Decode capability	All major 1D barcode symbologies including GS1 DataBar variants
Indicator	Visual, Audio
Operating mode	Handheld
Programming method	Manual (reading special barcode)
Program upgrade	Using RSM software, while a cradle unit is required
Operating temperature	0°C to 50°C (32°F to 120°F)
Storage temperature	-40°C to 60°C (-40°F to 140°F)
Humidity	5% to 95% (non-condensing)
Input voltage	4.75V – 6.5 VDC
Operating current	12mA (standby); 90mA (scanning); 150mA (transmitting)
Standby time	Over 7 days
Read barcode/charge	Over 160,000 scans
Working range	Up to 200 meters1 (open air)
Wireless communication	430.5MHz 432.0MHz , 433.05MHz 434.79MHz; Optional: 2.4GHz, Bluetooth, Class II
	Long-range series High-density series
	5 mil: 40-110mm 3 mil: 5-50mm
	10 mil: 10-280mm 10 mil: 10-85mm
Decoding depth	13 mil: 15-315mm 13 mil: 10-150mm
& Max. resolution	16 mil: 25-385mm 16 mil: 25-165mm
	35 mil: 145-630mm 35 mil: 145-295mm
Safety	Laser safety: EN60825-1, Class 1; EMC: EN 55022, EN 55024; Electrical safety: EN 60950-1
	Drop resistance: Multiple 1.5m (4.9ft) drops to concrete; Protection class: IP52
Cradle
Input voltage	5 VDC ± 0.25V
Cable	Straight 2.0m (PS2) / Straight 1.5m (USB) / Straight 2.0m (RS-232 )
Dimensions	21.3cm H × 9.7cm W × 7.5cm D
Weight	189g (with cable)
Indicator	Visual
Case material	ABS
Programming method	Manual (reading special barcode)
Program upgrade	PC online using RSM software.
Drop resistance	Multiple 1.2m (3.9ft) drops to concrete
