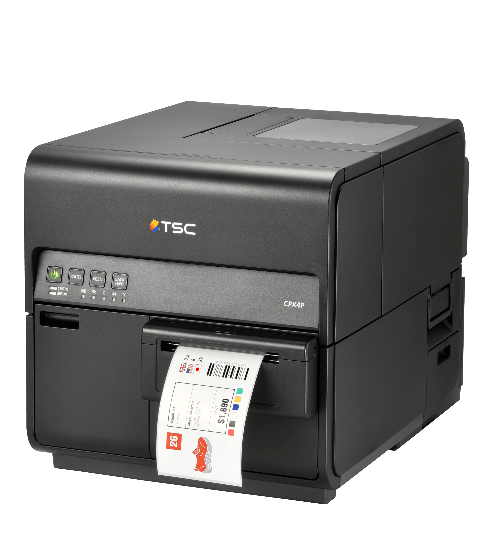

TSC CPX4 Colour Label Printer
CPX4 Exceptional Quality in colour label printing.
The CPX4 Series is designed for on demand full color labels providing full color images, clear text, and sharp barcodes at a print resolution of 1200 x 1200 dpi. Our ink is able to sustain its quality over time, maintaining color that is both waterproof and highly durable.
Outstanding Speed
The industry leading print speed of up to 11.8 ips is perfect for any and all applications to meet the constant influx of market demands for clear, high quality labels.
Extreme Flexibility
With the ability to produce high quality custom labels in house and on demand, the CPX4 Series allows for extreme flexibility for various full color labels without being limited to lead time or MOQ. Media width can be adjusted anywhere from 1′ minimum up to 4.72.” The CPX4 Series is able to incorporate variable data for short-run labels quickly and cost effectively.
Industry Compliance
Deliver GHS-compliant labels and meet industry requirements by printing out labels with the CPX4 Series The CPX4 Series is the perfect fit for any label that needs to be water, fade, abrasion, and smudge-resistant.
Absolute Cost Effectiveness
On demand label printing with the CPX4 Series significantly reduces the cost of label printing operations by printing the labels you need when you need them. The CPX4 Series saves time and money by eliminating the need to order pre-printed labels with MOQs. Additionally, our high yield ink cartridges can print more labels while reducing the need for frequent change outs.
Comprehensive Service
The CPX4 Series includes service beyond just the printer. TSC’s Color Management Program produces colors that are clear and accurate. The CPX4 Series offers one-year warranty from our dedicated support team. TSC offers an ink cost calculator tool service that helps estimate the cost per page ensuring the best ROI. In addition, the CPX4 Series seamlessly integrates with Bartender software to design and edit custom labels.
APPLICATIONS
Office & School
• Name Sticker
• ID Badge
Entertainment
• Event Pass
• Admission/Ticketing
SMBs
• Wine Label
• Agricultural Products
• Gift Voucher/Greeting Card
• Labels for Special Occasions
Manufacturing
• GHS- Compliant/Chemical
Retail
• Product Label
• Self-edge/ Promotional/ Markdown Label
Food & Beverage
• Fresh/Raw Food Label
• Nutrition Facts Label
Healthcare
• Medication Instruction
• Prescription Bottle Label
Logistics
• Shipping Label
Features
Model | CPX4P | CPX4D | |
Print Specification | Resolution | 1200 x 1200 dpi | 1200 x 1200 dpi |
Max. print speed | 300 mm (11.8″)/second at 1200 x 600 dpi | 300 mm (11.8″)/second at 1200 x 600 dpi | |
Max. print width | 106 mm (4.17”) | 106 mm (4.17”) | |
Max. print length | 397 mm (15.63”) | 397 mm (15.63”) | |
Indicator | Indicator | 8 LED indicators | 8 LED indicators |
Ink & Media Capacity | Media type | Roll-fed/fanfold, die cut; gap, black mark, continuous; matte paper, glossy paper, PET film, synthetic | Roll-fed/fanfold, die cut; gap, black mark, continuous; matte paper, glossy paper, PET film, synthetic |
Media width | 25.4 ~ 120 mm | 25.4 ~ 120 mm | |
Media thickness | 0.145 ~ 0.255 mm (5.71 ~ 10.04 mil) |
0.145 ~ 0.255 mm (5.71 ~ 10.04 mil) |
|
Media length | 6 ~ 400 mm | 6 ~ 400 mm | |
Media roll capacity | 7.9″ OD (200 mm), 3″ ID (76 mm) core |
7.9″ OD (200 mm), 3″ ID (76 mm) core |
|
Ink capacity | 240 ml each (230 ml usable); * Starter ink tank: 105 ml | 240 ml each (230 ml usable); * Starter ink tank: 105 ml | |
Ink color | CMYK | CMYK | |
Ink type | Pigment ink | Dye ink | |
Interface | Standard | • USB2.0 • Ethernet |
• USB2.0 • Ethernet |
Software Support | Software support | Oracle, Windows, BarTender | Oracle, Windows, BarTender |
Physical characteristics | Dimension | 386 mm (W) x 394 mm (H) x 570 mm (D) 15.20″ (W) x 15.51″ (H) x 22.44 (D) |
386 mm (W) x 394 mm (H) x 570 mm (D) 15.20″ (W) x 15.51″ (H) x 22.44″ (D) |
Weight | 25.5 kg | 25.5 kg |
